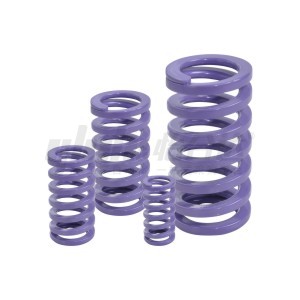

矩形弹簧超轻载弹簧标准型精密型最大压缩量L×60% L×50% 紫色 SWOSC-V材质

代码	类型		涂装剥离处理	材质	最大压缩量
YSWC	超轻载荷型	标准型	有涂装	油冷回火弹簧钢	L×(50~60)%
YSWC-N		标准型	无涂装		L×(50~60)%
J-YSWC		精密型	有涂装		L×50%

L	公差
50以下	±0.5
50以上	±1.0%

型号			内径 d	弹簧常数 N/mm	a	使用方法
						使用方法
						30万次F=L×50%		50万次F=L×45%		100万次F=L×40%
代码	D	L			压紧长庭	Fmm	负载N	Fmm	负载N	Fmm	负载N
YSWC YSWC-N J-YSWC	14.5	20	9	18.52	8	10.0	186.3	9.0	166.7	8	147.1
		25		14.82	10	12.5		11.3		10
		30		12.35	12	15.0		13.5		12
		35		10.58	14	17.5		15.8		14
		40		9.26	16	20.0		18.0		16
		45		8.23	18	22.5		20.3		18
		50		7.41	20	25.0		22.5		20
		55		6.74	22	27.5		24.8		22
		60		6.17	24	30.0		27.0		24
		65		5.70	26	32.5		29.3		26
		70		5.29	28	35.0		31.5		28
		75		4.94	30	37.5		33.8		30
		80		4.63	32	40.0		36.0		32
		90		4.12	36	45.0		40.5		36
		100		3.70	40	50.0		45.0		40
		125		2.96	50	62.5		56.3		50
	17	25	11	21.80	10	12.5	274.6	11.3	245.2	10	215.7
		30		18.16	12	15.0		13.5		12
		35		15.57	14	17.5		15.8		14
		40		13.62	16	20.0		18.0		16
		45		12.11	18	22.5		20.3		18
		50		10.90	20	25.0		22.5		20
		55		9.91	22	27.5		24.8		22
		60		9.08	24	30.0		27.0		24
		65		8.38	26	32.5		29.3		26
		70		7.78	28	35.0		31.5		28
		75		7.27	30	37.5		33.8		30
		80		6.81	32	40.0		36.0		32
		90		6.05	36	45.0		40.5		36
		100		5.45	40	50.0		45.0		40
		125		4.36	50	62.5		56.3		50
		150		3.63	60	75.0		67.5		60
	21	30	13	23.24	12	15.0	353.0	13.5	313.8	12	284.4
		35		19.92	14	17.5		15.8		14
		40		17.43	16	20.0		18.0		16
		45		15.50	18	22.5		20.3		18
		50		13.95	20	25.0		22.5		20
		55		12.68	22	27.5		24.8		22
		60		11.62	24	30.0		27.0		24
		65		10.73	26	32.5		29.3		26
		70		9.96	28	35.0		31.5		28
		75		9.30	30	37.5		33.8		30
		80		8.72	32	40.0		36.0		32
		90		7.75	36	45.0		40.5		36
		100		6.97	40	50.0		45.0		40
		125		5.58	50	62.5		56.3		50
		150		4.65	60	75.0		67.5		60
	26	30	16.5	34.87	12	15.0	519.8	13.5	470.7	12	411.9
		35		29.89	14	17.5		15.8		14
		40		26.15	16	20.0		18.0		16
		45		23.24	18	22.5		20.3		18
		50		20.92	20	25.0		22.5		20
		55		19.02	22	27.5		24.8		22
		60		17.43	24	30.0		27.0		24
		65		16.09	26	32.5		29.3		26
		70		14.94	28	35.0		31.5		28
		75		13.95	30	37.5		33.8		30
		80		13.08	32	40.0		36.0		32
		90		11.62	36	45.0		40.5		36
		100		10.46	40	50.0		45.0		40
		110		9.51	44	55.0		49.5		44
		125		8.37	50	62.5		56.3		50
		150		6.97	60	75.0		67.5		60
		175		5.98	70	87.5		78.8		70
200		5.23		80	100.0	90.0		80
32	40	21	34.87	16	20	696.3	18	627.6	16	559
	45		30.99	18	22		20.3		18
	50		27.89	20	25		22.5		20
	60		23.24	24	30		27		24
	70		19.92	28	35		31.5		28
	80		17.43	32	40		36		32
	90		15.50	36	45		40.5		36
	100		13.95	40	50		45		40
	110		12.68	44	55		49.5		44
	125		11.16	50	62.5		56.3		50
	150		9.30	60	75		67.5		60
	175		7.97	70	87.5		78.8		70
	200		6.97	80	100		90		80
	250		5.58	100	125		112.5		100
	300		4.65	120	150		135		120
39	40	26	45.77	16	20.0	912.0	18.0	823.8	16	725.7
	45		40.68	18	22.5		20.3		18
	50		36.61	20	25.0		22.5		20
	60		30.51	24	30.0		27.0		24
	70		26.15	28	35.0		31.5		28
	80		22.88	32	40.0		36.0		32
	90		20.34	36	45.0		40.5		36
	100		18.31	40	50.0		45.04		40
	110		16.64	44	55.0		49.5		44
	125		14.65	50	62.5		56.3		50
	150		12.20	60	75.0		67.5		60
	175		10.46	70	87.5		78.8		70
	200		9.15	80	100.0		90.0		80
	250		7.32	100	125.0		112.5		100
	300		6.10	120	150.0		135.0		120
46	50	32	48.81	20	25.0	1216.0	22.5	1098.0	20	970.9
	60		40.68	24	30.0		27.0		24
	70		34.87	28	35.0		31.5		28
	80		30.51	32	40.0		36.0		32
	90		27.12	36	45.0		40.5		36
	100		24.41	40	50.0		45.0		40
	110		22.19	44	55.0		49.5		44
	125		19.53	50	62.5		56.3		50
	150		16.27	60	75.0		67.5		60
	175		13.95	70	87.5		78.8		70
	200		12.20	80	100.0		90.0		80
	250		9.76	100	125.0		112.0		100
	300		8.14	120	150.0		135.0		120

型号			内径 d	弹簧常数 N/mm	a	使用方法
型号					a	30万次F=L×60%		50万次F=L×55%		100万次F=L×50%
代码	D	L			压紧长度	Fmm	负载N	Fmm	负载N	Fmm	负载N
YSWC YSWC-N	6	15	3	3.6	6.5		33	8.3	30	7.5	27
		20		2.7	8	12		11		10
		25		2.2	9	15		13.8		12.5
		30		1.8	11	18		16.5		15
		35		1.5	13	21		19.3		17.5
		40		1.3	15	24		22		20
	8	15	4.6	3.9	5	9	34	8.3	31	7.5	29
		20		2.9	6.6	12		11		10
		25		2.3	8	15		13.8		12.5
		30		1.9	9.3	18		16.5		15
		35		1.6	10.5	21		19.3		17.5
		40		1.4	11.8	24		22		20
		45		1.3	13.1	27		24.8		22.5
		50		1.2	14.4	30		27.5		25
		55		1.0	15.7	33		30.3		27.5
		60		0.9	16.7	36		33		30
		65		0.8	18.3	39		35.8		32.5
		70		0.8	19.5	42		38.5		35
		75		0.7	21	45		41.3		37.5
		80		0.7	22.2	48		44		40
	10	15	5.8	6.1	6	9	54	8.3	50	7.5	46
		20		4.6	7.5	12		11		10
		25		3.7	9	15		13.8		12.5
		30		3.0	10.5	18		16.5		15
		35		2.6	12	21		19.3		17.5
		40		2.3	13.4	24		22		20
		45		2.0	14.8	27		24.8		22.5
		50		1.8	16.2	30		27.5		25
		55		1.7	17.7	33		30.3		27.5
		60		1.5	19.1	36		33		30
		65		1.4	20.6	39		35.8		32.5
		70		1.3	22	42		38.5		35
		75		1.2	23.4	45		41.3		37.5
		80		1.1	24.9	48		44		40
		90		1.0	27.8	54		49.5		45
	12	20	7.4	5.4	7	12	64	11	59	10	54
		25		4.3	8	15		13.8		12.5
		30		3.6	10	18		16.5		15
		35		3.1	12	21		19.3		17.5
		40		2.7	14	24		22		20
		45		2.4	15	27		24.8		22.5
		50		2.2	16	30		27.5		25
		55		2.0	17	33		30.3		27.5
		60		1.8	18	36		33		30
		65		1.7	20	39		35.8		32.5
		70		1.5	21	42		38.5		35
		75		1.4	22	45		41.3		37.5
		80		1.3	24	48		44		40
		90		1.2	27	54		49.5		45
	14	25	8.5	8.17	10.5	15	122	13.8	113	12.5	103
		30		6.81	11	18		16.5		15
		35		5.84	13	21		19.3		17.5
		40		5.11	15	24		22		20
		45		4.54	16.7	27		24.8		22.5
		50		4.09	18	30		27.5		25
		55		3.71	20	33		30.3		27.5
		60		3.41	21.5	36		33		30
		65		3.14	23	39		35.8		32.5
		70		2.92	24.6	42		38.5		35
		75		2.72	26.2	45		41.3		37.5
		80		2.55	28	48		44		40
		90		2.27	31	54		49.5		45.5
		100		2.04	34	60		55		50
	16	25	9.5	9.0	10	15	137	13.8	124	12.5	113
30		7.5		11	18	16.5		15
35		6.5		12.5	21	19.3		17.5
40		5.7		13.9	24	22		20
45		5.0		15.3	27	24.8		22.5
50		4.5		16.7	30	27.5		25
55		4.1		18	33	30.3		27.5
60		3.7		19.4	36	33		30
65		3.5		20.8	39	35.8		32.5
70		3.2		22.2	42	38.5		35
75		3.0		23.6	45	41.3		37.5
80		2.8		25.0	48	44		40
90		2.5		27.8	54	49.5		45
100		2.3		30.5	60	55		50
125		1.8		37.5	75	68.8		62.5
18	25	11	10.6	9	15	157	13.8	144	12.5	132
	30		8.8	10.3	18		16.5		15
	35		7.5	11.5	21		19.3		17.5
	40		6.6	12.7	24		22		20
	45		5.9	14	27		24.8		22.5
	50		5.3	15.5	30		27.5		25
	55		4.8	16.5	33		30.3		27.5
	60		4.4	18	36		33		30
	65		4.1	19	39		35.8		32.5
	70		3.8	20.5	42		38.5		35
	75		3.5	22	45		41.3		37.5
	80		3.3	23	48		44		40
	90		2.9	25.5	54		49.5		45
	100		2.6	29	60		55		50
	125		2.1	35	75		68.8		62.5
20	25	12.5	14.10	9	15	216	13.8	196	12.5	176
	30		11.70	11	18		16.5		15
	35		10.10	12.5	21		19.3		17.5
	40		8.80	14	24		22		20
	45		7.80	15	27		24.8		22.5
	50		7.00	16.5	30		27.5		25
	55		6.40	18	33		30.3		27.5
	60		5.90	19.2	36		33		30
	65		5.40	20.5	39		35.8		32.5
	70		5.14	21.7	42		38.5		35
	75		4.79	23	45		41.3		37.5
	80		4.49	24.2	48		44		40
	90		4.00	27	54		49.5		45.5
	100		3.60	30	60		55		50
	125		2.80	37	75		68.8		62.5
	150		2.30	44	90		82.5		75
22	25	13.5	19.60	10	15	294	13.8	269	12.5	245
	30		16.30	11	18		16.5		15
	35		14.00	12	21		19.3		17.5
	40		12.30	14	24		22		20
	45		10.90	16	27		24.8		22.5
	50		9.80	18	30		27.5		25
	55		8.90	20	33		30.3		27.5
	60		8.20	22	36		33		30
	65		7.50	24	39		35.8		32.5
	70		7.00	26	42		38.5		35
	75		6.50	27	45		41.3		37.5
	80		6.10	29	48		44		40
	90		5.40	32	54		49.5		45
	100		4.90	35	60		55		50
	125		3.90	42	75		68.8		62.5
	150		3.30	50	90		82.5		75
27	25	17.5	28.11	9	容许范围以外		13.8	387	12.5	351
	30		23.43	11	18	422	16.5		15
	35		20.08	13	21		19.3		17.5
	40		17.57	14.5	24		22		20
	45		15.62	17	27		24.8		22.5
	50		14.06	18.5	30		27.5		25
	55		12.78	20	33		30.3		27.5
	60		11.71	22	36		33		30
	65		10.81	23.5	39		35.8		32.5
	70		10.04	25	42		38.5		35
	75		9.37	26.5	45		41.3		37.5
	80		8.79	28	48		44		40
	90		7.81	30.5	54		49.5		45
	100		7.03	33.5	60		55		50
	125		5.62	40.5	75		68.8		62.5
	150		4.69	48	90		82.5		75
	175		4.02	55	105		96.3		87.5
	200		3.51	62	120		110		100
30	25	20	31.38	9.5	容许范围以外		13.8	431	12.5	392
	30		26.15	11	18	471	16.5		15
	35		22.42	13	21		19.3		17.5
	40		19.61	14.5	24		22		20
	45		17.43	16.5	27		24.8		22.5
	50		15.69	18	30		27.5		25
	55		14.26	19.5	33		30.3		27.5
	60		13.08	20.8	36		33		30
	65		12.07	22	39		35.8		32.5
	70		11.21	23.3	42		38.5		35
	75		10.46	24.5	45		41.3		37.5
	80		9.81	25.8	48		44		40
	90		8.72	28.3	54		49.5		45
	100		7.85	30.8	60		55		50
	125		6.28	37	75		68.8		62.5
	150		5.23	43.5	90		82.5		75
	175		4.48	50	105		96.3		87.5
	200		3.92	57	120		110		100
