矩形弹簧 重载荷弹簧 标准型 精密型 最大压缩量L×24% 绿色 SWOSC-V材质
条件筛选：
种类筛选 矩形弹簧
颜色 绿色
材质 油冷回火弹簧钢
负载 重载荷
最大压缩量 L*24%
涂装剥离处理 无涂装
产品型号：
点击红色字体去完善选型
请先点击左下侧选项进行选型>>
请先点击左侧选项进行选型>>
未税折扣单价： -- --
含税折扣单价： ----
含税总价 (税率13%)： ￥--
预计发货天数：-- 天 (发货天数以下单次日起算，不含周日与法定假日)
购买数量()：
起订量：0
, 加量幅度：0
暂无数据
数量折扣
登录后可查看价格、加入购物车、一键购买
立即登录
价格生成中...
登录后可查看价格、加入购物车、一键购买
立即登录
代码的技术资料信息曾有所变更，可前往 型号勘误表 查看变更记录
相似商品
同类人气商品
计算选型
技术图档
全部型号
3D预览
产品简介
产品问答
技术图档（二）
材质图
参数图
材质图
参数图
产品简介
产品简介
产品问答
产品问答
关于此产品的常见问题
1、矩形弹簧可以定制不锈钢材质的吗？
矩形弹簧不可以用不锈钢材质来定制，虽然不锈钢材质耐腐蚀性能力强，但是抗拉强度低，所以做不到原矩形弹簧的高负载和好疲劳寿命。目前我司生产的矩形弹簧材质为50CrvA合金钢，不耐腐蚀不防锈，标准品表面都做了烤漆处理，也可以根据客户特殊场景不同需求去定制表面不烤漆、表面电镀的产品。
2、矩形弹簧是否可以上下叠加组合使用？
分两种情况分析：A.如果弹簧在叠加使用时，超过导销或沉头孔高度，会导致弹簧弯曲，从而造成断裂；B.如果导销或沉头孔高度大于弹簧的高度，则可以叠加组合使用，但是请注意（弹簧长度变长，节距不变的情况下，相应的弹簧常数理论会变小一半）。
3、为什么相同型号的矩形弹簧会有色差，而且圈数也不一样
为了满足客户的急单需求，我司对于标准品是有备库存的，当库存数量低于安全预警线时，会相应的提前生产备货，但是弹簧的颜色和圈数可能会因生产批次不同而异，所以库存品相同型号弹簧会有这种差异，但这个不会影响产品的负载和寿命，都是符合标准的，不会影响使用。
4、矩形弹簧的线径有参数吗？
矩形弹簧线径没有参数的。矩形弹簧的圈数、节距、线径都不做管控（为了保证负载要求，每批次需调整圈数和线径等参数，所以库存品有差异），只管控矩形弹簧的外形尺寸和负载。
材质图
参数图
材质图
| 代码 | 类型 |
涂装剥离处理 | 材质 | 最大压缩量 | |
| YSWH | 重载荷型 | 标准型 | 有涂装 | 油冷回火弹簧钢 | L×24% |
| YSWH-N | 无涂装 | ||||
| J-YSWH | 精密型 | 有涂装 | |||
L尺寸公差
| L | 公差 |
| 50以下 | ±0.5 |
| 50以上 | ±1.0% |
载荷(±10%)
直角度(2°以下)
载荷(N)=定数(N/mm)×压缩量
耐热温度为150℃
1kgf=9.81N
压紧长度为参考值，制作时会有少许差异。
弹簧颜色和圈数可能会因生产批次不同而异，但产品性能均符合标准，不影响使用！
对矩形螺旋弹簧进行喷丸处理，以剥离其表面涂装。
经涂装剥离处理后的弹簧非常容易生锈，因此，请在使用时充分注意。弹簧会因生锈而导致早期损坏。
与普通的涂装产品相比，其负载可能会因批次而异。

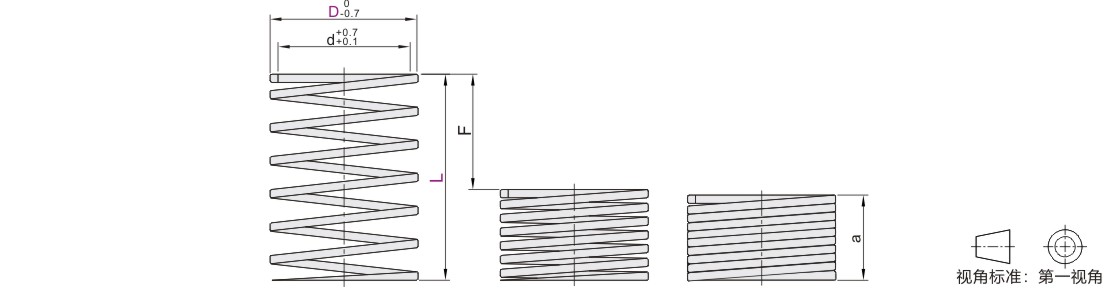

参数图
| 型号 | 内径 | 弹簧常数 N/mm |
a | 使用方法 | |||||||
| 30万次F=L×24% | 50万次F=L×21.6% | 100万次F=Lx192% | |||||||||
| 代码 | D | L | d | 压长度 | Fmm | 负载N | Fmm | 负载N | Fmm | 负载N | |
| YSWH YSWH-N J-YSWH |
6 | 15* | 3 | 38.10 | 11.0 | 3.6 | 137 | 3.2 | 123 | 2.9 | 110 |
| 20* | 28.60 | 14.7 | 4.8 | 4.3 | 3.8 | ||||||
| 25* | 22.90 | 18.4 | 6.0 | 5.4 | 4.8 | ||||||
| 30* | 19.10 | 22.0 | 7.2 | 6.5 | 5.8 | ||||||
| 35* | 16.30 | 25.7 | 8.4 | 7.6 | 6.7 | ||||||
| 40* | 14.30 | 29.4 | 9.6 | 8.6 | 7.7 | ||||||
| 45* | 12.70 | 33.0 | 10.8 | 9.7 | 8.6 | ||||||
| 50* | 11.40 | 36.7 | 12.0 | 10.8 | 9.6 | ||||||
| 55* | 10.40 | 40.4 | 13.2 | 11.9 | 10.6 | ||||||
| 60* | 9.50 | 44.0 | 14.4 | 13.0 | 11.5 | ||||||
| 8 | 10 | 4 | 86.25 | 7.2 | 2.4 | 206 | 2.2 | 186 | 1.9 | 167 | |
| 15 | 57.50 | 10.8 | 3.6 | 3.2 | 2.9 | ||||||
| 20 | 43.13 | 14.4 | 4.8 | 4.3 | 3.8 | ||||||
| 25 | 34.50 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 28.75 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 24.64 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 21.56 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 19.17 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 17.25 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 15.68 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 14.38 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 13.27 | 47.7 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 12.32 | 51.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 11.50 | 55.1 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 10.70 | 58.6 | 19.1 | 17.2 | 15.4 | ||||||
| 10 | 10* | 5 | 123.00 | 7.5 | 2.4 | 294 | 2.2 | 265 | 1.9 | 235 | |
| 15* | 81.70 | 11.1□ | 3.6 | 3.2 | 2.9 | ||||||
| 20 | 61.34 | 14.4 | 4.8 | 4.3 | 3.8 | ||||||
| 25 | 49.07 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 40.90 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 35.05 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 30.67 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 27.26 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 24.54 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 22.31 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 20.45 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 18.87 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 17.53 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 16.36 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 15.34 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 13.63 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 12 | 15* | 6 | 117.00 | 11.1 | 3.6 | 422 | 3.2 | 373 | 2.9 | 333 | |
| 20 | 86.34 | 14.4 | 4.8 | 4.3 | 3.8 | ||||||
| 25 | 69.07 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 57.56 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 49.34 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 43.17 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 38.37 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 34.54 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 31.40 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 28.78 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 26.57 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 24.67 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 23.02 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 21.59 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 19.19 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 14 | 20* | 7 | 120.00 | 14.6 | 4.8 | 579 | 4.3 | 520 | 3.8 | 461 | |
| 25 | 96.30 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 80.25 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 68.78 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 60.19 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 53.50 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 48.15 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 43.77 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 40.12 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 37.04 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 34.39 | 50.4 | 16.8 | 15. | 13.4 | ||||||
| 75 | 32.10 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 30.09 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 26.75 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 24.07 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125* | 19.30 | 28.5 | 30.0 | 27.0 | 24.0 | ||||||
| 16 | 20 | 8 | 157.00 | 14.8 | 4.8 | 755 | 4.3 | 677 | 3.8 | 608 | |
| 25 | 125.37 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 104.48 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 89.55 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 78.36 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 69.65 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 62.69 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 56.99 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 52.24 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 48.22 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 44.78 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 41.79 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 39.18 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 34.83 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 31.34 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 25.07 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 18 | 20* | 9 | 198.00 | 14.6 | 4.8 | 951 | 4.3 | 853 | 3.8 | 765 | |
| 25 | 157.96 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 131.64 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 112.83 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 98.73 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 87.76 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 78.98 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 71.80 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 65.82 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 60.75 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 56.42 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 52.65 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 49.36 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 43.88 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 39.49 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 31.59 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 20 | 20* | 10 | 245.00 | 14.6 | 4.8 | 1177 | 4.3 | 1059 | 3.8 | 941 | |
| 25 | 196.11 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 163.43 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 140.08 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 122.57 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 108.95 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 98.06 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 89.14 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 81.71 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 75.43 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 70.04 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 52.65 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 61.28 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 54.48 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 49.03 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 29.22 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 32.69 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 22 | 20* | 11 | 296.20 | 39.7 | 4.8 | 1422 | 4.32 | 1275 | 3.84 | 1138 | |
| 25 | 236.11 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 196.76 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 168.65 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 147.57 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 131.17 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 118.06 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 107.32 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 98.38 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 90.81 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 84.33 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 78.70 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 73.78 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 65.59 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 59.03 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 47.22 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 39.35 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 25 | 20* | 12.5 | 382.10 | 4.5 | 4.8 | 1834 | 4.32 | 1657 | 3.84 | 147 | |
| 25 | 306.85 | 18.0 | 6.0 | 5.4 | 4.8 | ||||||
| 30 | 255.71 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 219.18 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 191.78 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 170.47 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 153.43 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 139.48 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 127.85 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 118.02 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 109.59 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 102.28 | 54.4 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 95.89 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 85.24 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 76.71 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 61.37 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 51.14 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 43.84 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 38.36 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 27 | 25 | 13.5 | 357.78 | 18.0 | 6.0 | 2150 | 5.4 | 1932 | 4.8 | 1716 | |
| 30 | 298.15 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 255.56 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 223.61 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 198.77 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 178.89 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 162.63 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 149.07 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 137.61 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 127.78 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 119.26 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 111.81 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 99.38 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 89.44 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 71.56 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 59.63 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 51.11 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 44.72 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 30 | 25 | 15 | 440.74 | 18.0 | 6.0 | 2648 | 5.4 | 2380 | 4.8 | 2120 | |
| 30 | 367.28 | 21.6 | 7.2 | 6.5 | 5.8 | ||||||
| 35 | 314.81 | 25.2 | 8.4 | 7.6 | 6.7 | ||||||
| 40 | 275.46 | 28.8 | 9.6 | 8.6 | 7.7 | ||||||
| 45 | 244.86 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 220.37 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 200.34 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 183.64 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 169.52 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 157.41 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 146.91 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 137.73 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 122.43 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 110.19 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 88.15 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 73.46 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 62.96 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 55.09 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 35 | 40 | 17.5 | 375.00 | 28.8 | 9.6 | 3600 | 8.6 | 3240 | 7.7 | 2870 | |
| 45 | 333.33 | 32.4 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 300.00 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 272.73 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 250.00 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 230.77 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 214.29 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 200.00 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 187.50 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 166.67 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 150.00 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 120.00 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 100.00 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 87.71 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 75.00 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 40 | 40 | 20 | 490.00 | 28.7 | 9.6 | 4710 | 8.6 | 4240 | 7.7 | 3770 | |
| 45 | 436.21 | 33.0 | 10.8 | 9.7 | 8.6 | ||||||
| 50 | 392.59 | 36.0 | 12.0 | 10.8 | 9.6 | ||||||
| 55 | 356.90 | 40.4 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 327.16 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 301.99 | 47.7 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 280.42 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 261.73 | 55.1 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 245.37 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 218.11 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 196.30 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 157.04 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 130.86 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 112.17 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 98.15 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 225 | 87.24 | 162.0 | 54.0 | 48.6 | 43.2 | ||||||
| 250 | 78.52 | 180.0 | 60.0 | 54.0 | 48.0 | ||||||
| 275 | 71.38 | 198.0 | 66.0 | 59.4 | 52.8 | ||||||
| 300 | 65.43 | 220.2 | 72.0 | 64.8 | 57.6 | ||||||
| 50 | 50 | 25 | 612.96 | 36.0 | 12.0 | 7360 | 10.8 | 6620 | 9.6 | 5880 | |
| 55 | 557.24 | 39.6 | 13.2 | 11.9 | 10.6 | ||||||
| 60 | 510.80 | 43.2 | 14.4 | 13.0 | 11.5 | ||||||
| 65 | 471.51 | 46.8 | 15.6 | 14.0 | 12.5 | ||||||
| 70 | 437.83 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 75 | 406.64 | 54.0 | 18.0 | 16.2 | 14.4 | ||||||
| 80 | 383.10 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 340.53 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 306.48 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 245.19 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 204.32 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 175.13 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 153.24 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 225 | 136.21 | 162.0 | 54.0 | 48.6 | 43.2 | ||||||
| 250 | 112.59 | 180.0 | 60.0 | 54.0 | 48.0 | ||||||
| 275 | 111.45 | 198.0 | 66.0 | 59.4 | 52.8 | ||||||
| 300 | 102.16 | 216.0 | 72.0 | 64.8 | 57.6 | ||||||
| 350 | 87.57 | 256.9 | 84.0 | 75.6 | 67.2 | ||||||
| 60 | 60 | 30 | 736.11 | 43.2 | 14.4 | 10590 | 13.0 | 9540 | 11.5 | 8470 | |
| 70 | 630.95 | 50.4 | 16.8 | 15.1 | 13.4 | ||||||
| 80 | 552.08 | 57.6 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 490.74 | 64.8 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 441.67 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 353.33 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 294.44 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 252.38 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 220.83 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 225 | 196.30 | 162.0 | 54.0 | 48.6 | 43.2 | ||||||
| 250 | 176.67 | 180.0 | 60.0 | 54.0 | 48.0 | ||||||
| 275 | 160.61 | 198.0 | 66.0 | 59.4 | 52.8 | ||||||
| 300 | 147.22 | 216.0 | 72.0 | 64.8 | 57.6 | ||||||
| 350 | 126.19 | 252.0 | 84.0 | 75.6 | 67.2 | ||||||
| 70 | 70 | 38.5 | 773.81 | 51.4 | 16.8 | 12557 | 15.1 | 11301 | 13.4 | 10046 | |
| 80 | 677.08 | 58.7 | 19.2 | 17.3 | 15.4 | ||||||
| 90 | 601.85 | 66.1 | 21.6 | 19.4 | 17.3 | ||||||
| 100 | 541.67 | 72.0 | 24.0 | 21.6 | 19.2 | ||||||
| 125 | 433.33 | 90.0 | 30.0 | 27.0 | 24.0 | ||||||
| 150 | 361.11 | 108.0 | 36.0 | 32.4 | 28.8 | ||||||
| 175 | 309.52 | 126.0 | 42.0 | 37.8 | 33.6 | ||||||
| 200 | 270.83 | 144.0 | 48.0 | 43.2 | 38.4 | ||||||
| 225 | 240.74 | 162.0 | 54.0 | 48.6 | 43.2 | ||||||
| 250 | 216.67 | 180.0 | 60.0 | 54.0 | 48.0 | ||||||
| 275 | 196.97 | 198.0 | 66.0 | 59.4 | 52.8 | ||||||
| 300 | 174.00 | 216.0 | 72.0 | 64.7 | 57.5 | ||||||
| 350 | 149.00 | 252.0 | 84.0 | 75.5 | 67.1 | ||||||
带*号仅适用标准型。
抱歉，未生成产品型号
建议您:1. 添加筛选条件,生成产品型号
领劵
客服
- 0
购物车
公众号
微信公众号
订单/资讯随手掌握
微信技术交流服务群
扫码添加进群
浏览记录
问题反馈
置顶
Copyright © 2010-2025 东莞怡合达自动化股份有限公司 版权所有 粤ICP备14032684号
营业执照: 91441900566614589Q
网络举报APP下载中心
中国互联网举报中心
