矩形弹簧 中载荷弹簧 标准型 精密型 最大压缩量L×32% 红色 SWOSC-V材质
条件筛选：
种类筛选 矩形弹簧
颜色 红色
材质 油冷回火弹簧钢
负载 中载荷
最大压缩量 L*32%
涂装剥离处理 无涂装
产品型号：
点击红色字体去完善选型
请先点击左下侧选项进行选型>>
请先点击左侧选项进行选型>>
未税折扣单价： -- --
含税折扣单价： ----
含税总价 (税率13%)： ￥--
预计发货天数：-- 天 (发货天数以下单次日起算，不含周日与法定假日)
购买数量()：
起订量：0
, 加量幅度：0
暂无数据
数量折扣
登录后可查看价格、加入购物车、一键购买
立即登录
价格生成中...
登录后可查看价格、加入购物车、一键购买
立即登录
代码的技术资料信息曾有所变更，可前往 型号勘误表 查看变更记录
相似商品
同类人气商品
计算选型
技术图档
全部型号
3D预览
产品简介
产品问答
技术图档（二）
材质图
参数图
材质图
参数图
产品简介
产品简介
产品问答
产品问答
关于此产品的常见问题
1、矩形弹簧可以定制不锈钢材质的吗？
矩形弹簧不可以用不锈钢材质来定制，虽然不锈钢材质耐腐蚀性能力强，但是抗拉强度低，所以做不到原矩形弹簧的高负载和好疲劳寿命。目前我司生产的矩形弹簧材质为50CrvA合金钢，不耐腐蚀不防锈，标准品表面都做了烤漆处理，也可以根据客户特殊场景不同需求去定制表面不烤漆、表面电镀的产品。
2、矩形弹簧是否可以上下叠加组合使用？
分两种情况分析：A.如果弹簧在叠加使用时，超过导销或沉头孔高度，会导致弹簧弯曲，从而造成断裂；B.如果导销或沉头孔高度大于弹簧的高度，则可以叠加组合使用，但是请注意（弹簧长度变长，节距不变的情况下，相应的弹簧常数理论会变小一半）。
3、为什么相同型号的矩形弹簧会有色差，而且圈数也不一样
为了满足客户的急单需求，我司对于标准品是有备库存的，当库存数量低于安全预警线时，会相应的提前生产备货，但是弹簧的颜色和圈数可能会因生产批次不同而异，所以库存品相同型号弹簧会有这种差异，但这个不会影响产品的负载和寿命，都是符合标准的，不会影响使用。
4、矩形弹簧的线径有参数吗？
矩形弹簧线径没有参数的。矩形弹簧的圈数、节距、线径都不做管控（为了保证负载要求，每批次需调整圈数和线径等参数，所以库存品有差异），只管控矩形弹簧的外形尺寸和负载。
材质图
参数图
材质图
| 代码 | 类型 |
涂装剥离处理 | 材质 | 最大压缩量 | |
| YSWM | 中载荷型 | 标准型 | 有涂装 | 油冷回火弹簧钢 | L×32% |
| YSWM-N | 无涂装 | ||||
| J-YSWM | 精密型 | 有涂装 | |||
L尺寸公差
| L | 公差 |
| 50以下 | ±0.5 |
| 50以上 | ±1.0% |
载荷(±10%)
直角度(2°以下)
载荷(N)=定数(N/mm)×压缩量
耐热温度为150℃
1kgf=9.81N
压紧长度为参考值，制作时会有少许差异。
弹簧颜色和圈数可能会因生产批次不同而异，但产品性能均符合标准，不影响使用！
对矩形螺旋弹簧进行喷丸处理，以剥离其表面涂装。
经涂装剥离处理后的弹簧非常容易生锈，因此，请在使用时充分注意。弹簧会因生锈而导致早期损坏。
与普通的涂装产品相比，其负载可能会因批次而异。

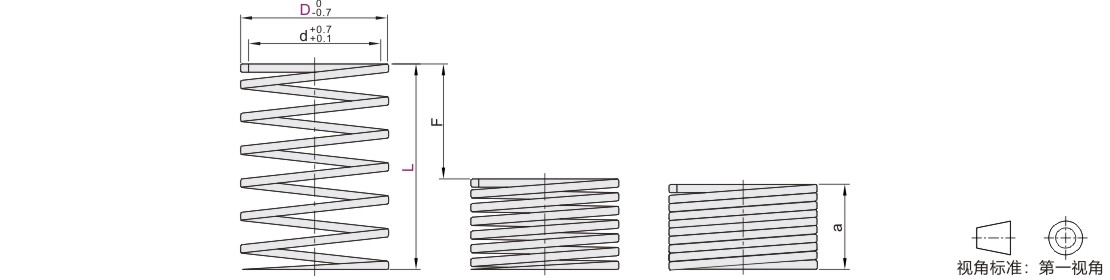

参数图
| 型号 | 内径 | 弹簧常数 N/mm |
a | 使用方法 | |||||||
| 30万次F=L×32% | 50万次F=L288% | 100万次F=L256% | |||||||||
| 代码 | D | L | d | 压紧长度 | Fmm | 负载N | Fmm | 负载N | Fmm | 负载N | |
| YSWM YSWM-N J-YSWM |
6 | 15* | 3 | 20.3 | 9.9 | 4.7 | 99 | 4.2 | 89 | 3.7 | 80 |
| 20* | 15.4 | 13.2 | 6.5 | 5.7 | 5.0 | ||||||
| 25* | 12.2 | 16.5 | 8.5 | 7.1 | 6.3 | ||||||
| 30* | 10.1 | 19.5 | 9.5 | 8.5 | 7.8 | ||||||
| 35* | 8.9 | 22.8 | 11.3 | 10.2 | 9.1 | ||||||
| 40* | 7.6 | 26.1 | 12.8 | 11.6 | 10.3 | ||||||
| 45* | 6.7 | 29.5 | 14.5 | 13 | 11.6 | ||||||
| 50* | 6.2 | 32.6 | 16 | 14.5 | 12.9 | ||||||
| 55* | 5.7 | 36.1 | 17.5 | 15.8 | 14.1 | ||||||
| 60* | 5.2 | 39.2 | 19.3 | 17.4 | 15.5 | ||||||
| 8 | 10 | 4 | 42.57 | 6.3 | 3.2 | 137 | 2.9 | 123 | 2.6 | 108 | |
| 15 | 28.38 | 9.4 | 4.8 | 4.3 | 3.8 | ||||||
| 20 | 21.28 | 12.5 | 6.4 | 5.8 | 5.1 | ||||||
| 25 | 17.03 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 14.19 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 12.16 | 21.9 | 11.2 | 10.1 | 9.0 | ||||||
| 20 | 10.64 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 9.46 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 8.51 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 7.74 | 34.4 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 7.09 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 6.55 | 42.5 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 6.08 | 45.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 5.68 | 49.1 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 5.5 | 52.2 | 25.7 | 23.1 | 20.4 | ||||||
| 90* | 4.7 | 27.5 | 28.8 | 25.92 | 23.04 | ||||||
| 100* | 4.3 | 31.0 | 32.0 | 28.8 | 25.6 | ||||||
| 10 | 10* | 5 | 61.20 | 6.5 | 3.2 | 196 | 2.9 | 177 | 2.6 | 157 | |
| 15* | 40.80 | 9.8 | 4.7 | 4.3 | 3.7 | ||||||
| 20 | 30.64 | 12.5 | 6.4 | 5.8 | 5.1 | ||||||
| 25 | 24.51 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 20.43 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 17.51 | 21.9 | 11.2 | 10.1 | 9.0 | ||||||
| 40 | 15.32 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 13.62 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 12.26 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 11.14 | 34.4 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 10.21 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 9.43 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 8.75 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 8.17 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 7.66 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 6.81 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100* | 6.10 | 31.2 | 32.0 | 28.8 | 25.6 | ||||||
| 12 | 15* | 6 | 59.10 | 9.7 | 4.8 | 284 | 4.3 | 255 | 3.7 | 226 | |
| 20 | 44.27 | 12.5 | 6.4 | 5.8 | 5.1 | ||||||
| 25 | 35.42 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 29.51 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 25.30 | 21.9 | 11.2 | 10.1 | 9.0 | ||||||
| 40 | 22.14 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 19.68 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 17.71 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 16.10 | 34.4 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 14.76 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 13.62 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 13.65 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 11.81 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 11.07 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 9.84 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100* | 8.90 | 31.5 | 32.0 | 28.8 | 25.6 | ||||||
| 14 | 20* | 7 | 59.70 | 13.2 | 6.3 | 383 | 5.8 | 345 | 5.1 | 306 | |
| 25 | 47.64 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 39.70 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 34.03 | 21.9 | 11.2 | 10.1 | 9.0 | ||||||
| 40 | 29.77 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 26.47 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 23.82 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 21.65 | 34.4 | 17.6 | 15.8 | 14. | ||||||
| 60 | 19.85 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 18.32 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 17.01 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 15.88 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 14.89 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 13.23 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 11.91 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125* | 9.60 | 39.4 | 40.0 | 36.0 | 32.0 | ||||||
| 16 | 20* | 8 | 78.20 | 13.1 | 6.4 | 500 | 5.8 | 451 | 5.2 | 402 | |
| 25 | 62.64 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 52.20 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 44.74 | 21.9 | 11.2 | 10.1 | 9.0 | ||||||
| 40 | 39.15 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 34.80 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 31.32 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 28.47 | 34.4 | 17.6 | 15.8 | 14. | ||||||
| 60 | 26.10 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 24.09 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 22.37 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 20.88 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 19.57 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 17.40 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 15.66 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 12.53 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 18 | 20* | 9 | 99.50 | 13.2 | 6.4 | 637 | 5.8 | 569 | 5.1 | 510 | |
| 25 | 79.03 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 65.86 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 56.45 | 21.9 | 11.2 | 10. | 9.0 | ||||||
| 40 | 49.39 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 43.90 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 39.51 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 35.92 | 34.4 | 17.6 | 15.8 | 14. | ||||||
| 60 | 32.93 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 30.40 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 28.22 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 26.34 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 24.70 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 21.95 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 19.76 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 15.81 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 20 | 20* | 10 | 123.00 | 13.2 | 6.4 | 785 | 5.7 | 706 | 5.2 | 628 | |
| 25 | 98.06 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 81.71 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 70.04 | 21.9 | 11.2 | 10. | 9.0 | ||||||
| 40 | 61.28 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 54.48 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 49.03 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 44.57 | 34.4 | 17.6 | 15.8 | 14. | ||||||
| 60 | 40.86 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 37.71 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 35.02 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 32.6 | 47.0 | 24.0 | 21.5 | 19.2 | ||||||
| 80 | 30.5 | 20.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 27.2 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 24.4 | 62.5 | 32. | 28.9 | 25.6 | ||||||
| 125 | 19.5 | 78.3 | 40.0 | 36.1 | 32.0 | ||||||
| 150 | 16.2 | 93.96 | 48.0 | 43.2 | 38.4 | ||||||
| 22 | 20* | 11 | 148.60 | 5.9 | 6.4 | 951 | 5.76 | 853 | 5.12 | 765 | |
| 25 | 118.47 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 98.73 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 84.62 | 21.9 | 11.2 | 10.1 | 9.0 | ||||||
| 40 | 74.05 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 65.82 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 59.24 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 53.85 | 34.4 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 49.36 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 45.57 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 42.31 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 39.49 | 470 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 37.02 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 32.91 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 29.62 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 23.69 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 19.75 | 93.9 | 48.0 | 43.2 | 38.4 | ||||||
| 25 | 20* | 12.5 | 197.80 | 5.8 | 6.4 | 1266 | 5.76 | 1098 | 5.12 | 98 | |
| 25 | 152.50 | 15.7 | 8.0 | 7.2 | 6.4 | ||||||
| 30 | 127.08 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 108.93 | 21.9 | 11.2 | 10. | 9.0 | ||||||
| 40 | 95.31 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 84.72 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 76.25 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 69.32 | 34.4 | 17.6 | 15.8 | 14. | ||||||
| 60 | 63.54 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 58.65 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 54.46 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 50.83 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 47.66 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 42.36 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 00 | 38.13 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 25 | 30.50 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 25.42 | 93.9 | 48.0 | 43.2 | 38.4 | ||||||
| 75 | 21.79 | 109.6 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 19.06 | 125.2 | 64.0 | 57.6 | 51.2 | ||||||
| 27 | 25 | 13.5 | 178.47 | 15.7 | 8.0 | 1432 | 7.2 | 1285 | 6.4 | 1145 | |
| 30 | 148.73 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 127.48 | 219 | 11.2 | 10.1 | 9.0 | ||||||
| 40 | 111.55 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 99.15 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 89.24 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 81.12 | 34.4 | 17.6 | 15.8 | 14. | ||||||
| 60 | 74.36 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 68.64 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 63.74 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 59.49 | 470 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 55.77 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 49.58 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 44.62 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 35.69 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 29.75 | 93.9 | 48.0 | 43.2 | 38.4 | ||||||
| 175 | 25.50 | 1,096 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 22.31 | 125.2 | 64.0 | 57.6 | 51.2 | ||||||
| 30 | 25 | 15 | 219.13 | 15.7 | 8.0 | 1765 | 7.2 | 1579 | 6.4 | 1412 | |
| 30 | 182.75 | 18.8 | 9.6 | 8.6 | 7.7 | ||||||
| 35 | 156.65 | 21.9 | 11.2 | 10. | 9.0 | ||||||
| 40 | 137.07 | 25.0 | 12.8 | 11.5 | 10.2 | ||||||
| 45 | 121.84 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 109.65 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 99.68 | 34.4 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 91.38 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 84.35 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 78.32 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 73.10 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 68.53 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 60.92 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 54.83 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 43.86 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 36.55 | 93.0 | 48.0 | 43.2 | 38.4 | ||||||
| 175 | 31.33 | 109.6 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 27.41 | 125.2 | 64.0 | 57.6 | 51.2 | ||||||
| 35 | 40 | 17.5 | 187.50 | 25.0 | 12.8 | 2400 | 11.5 | 2160 | 10.2 | 1912 | |
| 45 | 166.67 | 28.2 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 150.00 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 136.36 | 34.4 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 125.00 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 115.38 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 107.14 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 100.00 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 93.75 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 83.33 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 75.00 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 60.00 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 50.00 | 93.9 | 48.0 | 43.2 | 38.4 | ||||||
| 175 | 42.86 | 109.6 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 37.50 | 125.2 | 64.0 | 57.6 | 51.2 | ||||||
| 40 | 40 | 20 | 245.00 | 25.0 | 12.8 | 3140 | 11.5 | 2820 | 10.2 | 2510 | |
| 45 | 217.59 | 29.4 | 14.4 | 13.0 | 11.5 | ||||||
| 50 | 195.83 | 31.3 | 16.0 | 14.4 | 12.8 | ||||||
| 55 | 178.03 | 36.0 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 163.19 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 150.64 | 42.5 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 139.88 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 130.56 | 49.1 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 122.40 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 108.80 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 97.92 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 78.33 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 65.28 | 93.9 | 48.0 | 43.2 | 38.4 | ||||||
| 175 | 55.95 | 109.6 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 48.96 | 125.2 | 64.0 | 57.6 | 51.2 | ||||||
| 225 | 43.52 | 140.9 | 72.0 | 64.8 | 57.6 | ||||||
| 250 | 39.17 | 156.5 | 80.0 | 72.0 | 64.0 | ||||||
| 275 | 35.61 | 172.2 | 88.0 | 79.2 | 70.4 | ||||||
| 300 | 32.64 | 196.2 | 96.0 | 86.4 | 76.8 | ||||||
| 50 | 50 | 25 | 306.25 | 31.3 | 16.0 | 4900 | 14.4 | 4410 | 12.8 | 3920 | |
| 55 | 278.41 | 34.4 | 17.6 | 15.8 | 14.1 | ||||||
| 60 | 255.21 | 37.6 | 19.2 | 17.3 | 15.4 | ||||||
| 65 | 235.58 | 40.7 | 20.8 | 18.7 | 16.6 | ||||||
| 70 | 218.75 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 75 | 204.17 | 47.0 | 24.0 | 21.6 | 19.2 | ||||||
| 80 | 191.41 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 170.14 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 153.13 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 122.50 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 102.08 | 93.9 | 48.0 | 43.2 | 38.4 | ||||||
| 175 | 87.50 | 109.6 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 76.56 | 125.2 | 64.0 | 57.6 | 51.2 | ||||||
| 225 | 68.06 | 140.9 | 72.0 | 64.8 | 57.6 | ||||||
| 250 | 61.25 | 156.5 | 80.0 | 72.0 | 64.0 | ||||||
| 275 | 55.68 | 172.2 | 88.0 | 79.2 | 70.4 | ||||||
| 300 | 51.04 | 187.8 | 96.0 | 86.4 | 76.8 | ||||||
| 350 | 43.75 | 228.9 | 112.0 | 100.8 | 89.6 | ||||||
| 60 | 60 | 30 | 367.48 | 37.6 | 19.2 | 7060 | 17.3 | 6350 | 15.4 | 5640 | |
| 70 | 314.98 | 43.8 | 22.4 | 20.2 | 17.9 | ||||||
| 80 | 275.61 | 50.1 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 244.98 | 56.3 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 220.49 | 62.6 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 176.39 | 78.3 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 146.99 | 93.9 | 48.0 | 43.2 | 38.4 | ||||||
| 175 | 125.99 | 109.6 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 110.24 | 125.2 | 64.0 | 57.6 | 51.2 | ||||||
| 225 | 97.99 | 140.9 | 72.0 | 64.8 | 57.6 | ||||||
| 250 | 88.19 | 156.5 | 80.0 | 72.0 | 64.0 | ||||||
| 275 | 80.18 | 172.2 | 88.0 | 79.2 | 70.4 | ||||||
| 300 | 73.50 | 187.8 | 96.0 | 86.4 | 76.8 | ||||||
| 350 | 63.00 | 228.9 | 112.0 | 100.8 | 89.6 | ||||||
| 70 | 70 | 38.5 | 379.46 | 45.8 | 22.4 | 8500 | 20.2 | 7650 | 17.9 | 6800 | |
| 80 | 332.03 | 52.3 | 25.6 | 23.0 | 20.5 | ||||||
| 90 | 295.14 | 58.9 | 28.8 | 25.9 | 23.0 | ||||||
| 100 | 265.63 | 65.4 | 32.0 | 28.8 | 25.6 | ||||||
| 125 | 212.50 | 81.8 | 40.0 | 36.0 | 32.0 | ||||||
| 150 | 177.08 | 98.1 | 48.0 | 43.2 | 38.4 | ||||||
| 175 | 151.79 | 114.5 | 56.0 | 50.4 | 44.8 | ||||||
| 200 | 132.81 | 130.8 | 64.0 | 57.6 | 51.2 | ||||||
| 225 | 118.06 | 140.9 | 72.0 | 64.8 | 57.6 | ||||||
| 250 | 106.25 | 163.5 | 80.0 | 72.0 | 64.0 | ||||||
| 275 | 96.59 | 172.2 | 88.0 | 79.2 | 70.4 | ||||||
| 300 | 86.70 | 196.1 | 96.0 | 8330 | 86.4 | 7497 | 76.7 | 6664 | |||
| 350 | 74.50 | 228.8 | 112.0 | 100.8 | 89.5 | ||||||
带*号仅适用标准型。
抱歉，未生成产品型号
建议您:1. 添加筛选条件,生成产品型号
领劵
客服
- 0
购物车
公众号
微信公众号
订单/资讯随手掌握
微信技术交流服务群
扫码添加进群
浏览记录
问题反馈
置顶
Copyright © 2010-2025 东莞怡合达自动化股份有限公司 版权所有 粤ICP备14032684号
营业执照: 91441900566614589Q
网络举报APP下载中心
中国互联网举报中心
