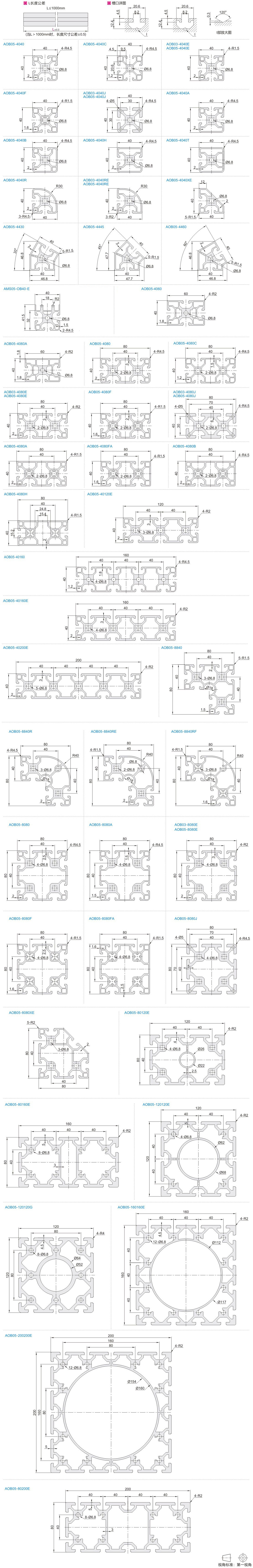

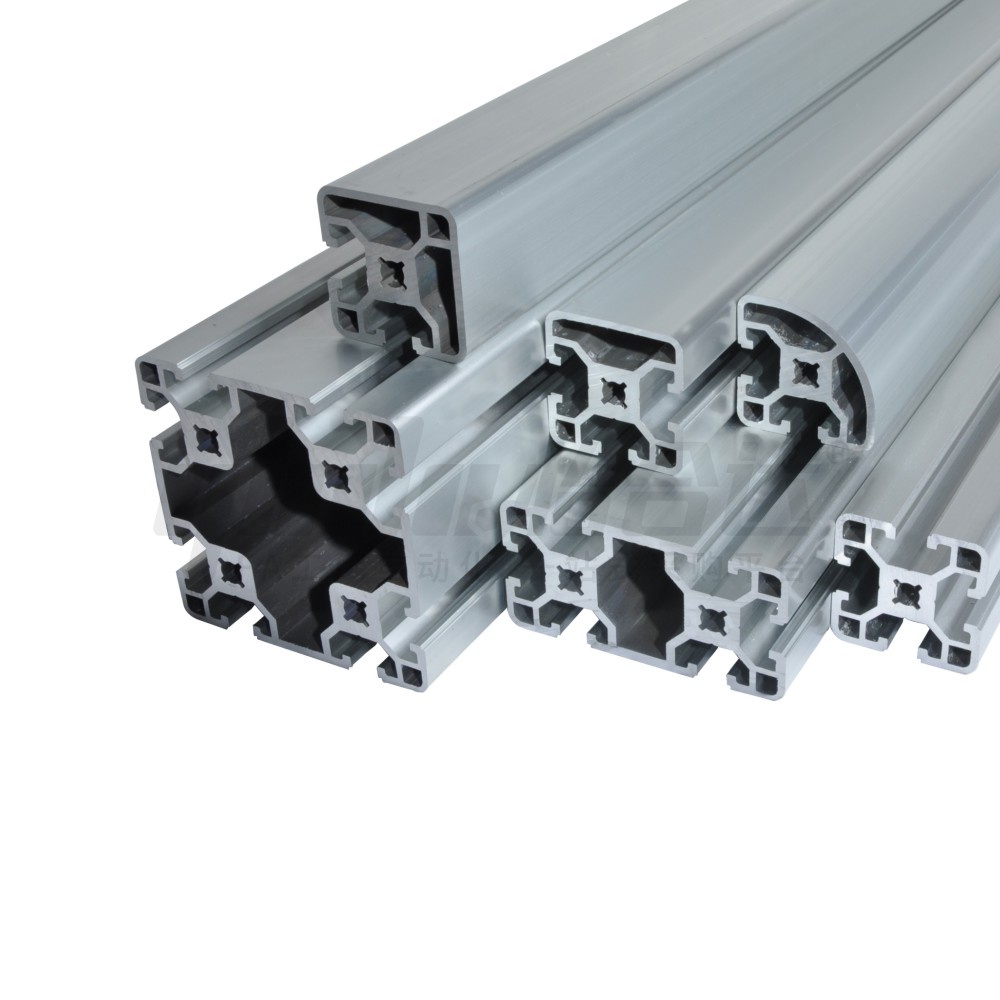

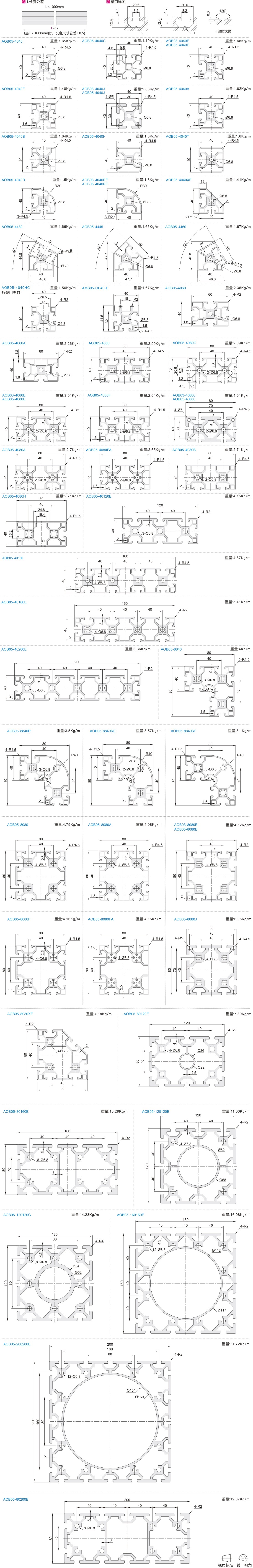

铝合金型材欧标40槽宽8.2系列边长120/160/200mm A6063-T5

型号		L 最小单位0.5	截面尺寸	每米重量Kg/m (理论值)	截面积 ( mm²)	截面惯性矩		抗弯截面模数
代码	规格	L 最小单位0.5	截面尺寸	每米重量Kg/m (理论值)	截面积 ( mm²)	ℓx	ℓy	Wxmax（ mm³)	Wymax（ mm³)
AOB03	4040E	50~6000	40 ×40	1.68	608.10	9.22 × 10⁴	9.22 × 10⁴	4609.80	4609.80
	4040J			2.06	747.69	11.47 × 10⁴	11.47 × 10⁴	5733.10	5733.10
	4040RE			1.50	543.40	7.24 × 10⁴	7.24 × 10⁴	3360.99	3360.99
	4080E		40 ×80	3.01	1094.38	17.79 × 10⁴	66.91 × 10⁴	8893.20	16727.53
	4080J		40 ×80	4.01	1457.63	23.85 × 10⁴	83.36 × 10⁴	11922.55	20838.83
	8080E		80 ×80	4.52	1642.72	119.09 × 10⁴	119.09 × 10⁴	29771.48	29771.48
AOB05	4040		40 ×40	1.65	597.70	8.82 × 10⁴	8.82 × 10⁴	4411.05	4411.05
	4040C			1.19	432.73	6.67 × 10⁴	6.67 × 10⁴	3333.30	3333.30
	4040E			1.68	608.10	9.22 × 10⁴	9.22 × 10⁴	4609.80	4609.80
	4040F			1.48	535.91	8.28 × 10⁴	8.28 × 10⁴	4139.80	4139.80
	4040J			2.06	747.69	11.47 × 10⁴	11.47 × 10⁴	5733.10	5733.10
	4040A			1.62	588.53	8.70 × 10⁴	8.70 × 10⁴	4305.22	4349.35
	4040B			1.64	596.60	8.87 × 10⁴	8.87 × 10⁴	4395.26	4395.26
	4040H			1.60	579.36	8.58 × 10⁴	8.58 × 10⁴	4288.16	4288.16
	4040T			1.60	581.18	8.52 × 10⁴	8.76 × 10⁴	4261.69	4354.76
	4430			1.66	604.06	8.70 × 10⁴	9. 17 × 10⁴	3233.92	3492.17
	4445			1.66	603.12	8.75 × 10⁴	9. 14 × 10⁴	3126.54	3406.69
	4460			1.67	604.57	8.83 × 10⁴	9. 14 × 10⁴	3239.80	3527.88
	4040R			1.50	544.45	7. 14 × 10⁴	7. 14 × 10⁴	3323.41	3320.92
	4040RE			1.50	543.40	7.24 × 10⁴	7.24 × 10⁴	3360.99	3360.99
	4040XE			1.41	512.62	6.41 × 10⁴	6.41 × 10⁴	2832.74	2832.74
	4060		40 ×60	2.35	855.48	12.72 × 10⁴	26.03 × 10⁴	6357.23	8676.37
	4060A		40 ×60	2.26	822.79	12.58× 10⁴	25.72× 10⁴	6235.98	8572.20
	4080		40 ×80	2.99	1085.80	17.45 × 10⁴	65.52 × 10⁴	8722.75	16380.50
	4080C			2.09	760.52	12.80 × 10⁴	47.98 × 10⁴	6399.25	11993.75
	4080E			3.01	1094.38	17.79 × 10⁴	66.91 × 10⁴	8893.20	16727.53
	4080F			2.64	959.18	15.94 × 10⁴	59.55 × 10⁴	7970.60	14887.15
	4080J			4.01	1457.63	23.85 × 10⁴	83.36 × 10⁴	11922.55	20838.83
	4080A			2.70	980.91	17.28 × 10⁴	65.80 × 10⁴	8579.05	16450.77
	4080FA			2.65	960.95	15 .89 × 10⁴	60.08 × 10⁴	7944.73	15019.74
	4080B			2.71	982.65	17.22 × 10⁴	66.33 × 10⁴	8553.20	16539.01
	4080H			2.71	984.38	17.651 × 10⁴	65.837 × 10⁴	8825.69	16459.29
	8840		80 ×80	4.00	1453.23	82.20 × 10⁴	82.20 × 10⁴	17810.51	17810.51
	8840R			3.50	1273.25	72.07 × 10⁴	72.07 × 10⁴	16722.25	16772.25
	8840RE			3.57	1298.44	74.69 × 10⁴	74.69 × 10⁴	17466.95	17466.95
	8840RF			3.10	1126.28	65.85 × 10⁴	66.08 × 10⁴	15397.37	15452.46
	8080			4.75	1727.15	119.20 × 10⁴	119. 19 × 10⁴	29799.03	29798.58
	8080A			4.08	1482.51	102. 13 × 10⁴	102. 13 × 10⁴	25532.05	25532.05
	8080E			4.52	1642.72	119.09 × 10⁴	119.09 × 10⁴	29771.48	29771.48
	8080F			4.16	1511.46	108.20 × 10⁴	108. 19 × 10⁴	27047.68	27047.68
	8080FA			4.15	1507.71	108.21 × 10⁴	108.21 × 10⁴	27053.94	27053.23
	8080J			6.35	2306.57	159.74 × 10⁴	159.98 × 10⁴	39934.13	39934.13
	8080XE			4.18	1520.24	94. 14 × 10⁴	94. 14 × 10⁴	21222.00	21222.00
	40120E		40 × 120	4.15	1508.71	26.32 × 10⁴	206.40 × 10⁴	13157.97	34399.97
	40160		40 × 160	4.87	1769.62	26.20 × 10⁴	411.52 × 10⁴	13098.94	51440.23
	40160E		40 × 160	5.41	1965.01	34.90 × 10⁴	467.82 × 10⁴	17451.65	58477.78
	40200E		40 ×200	6.36	2312.88	42.35 × 10⁴	863.63 × 10⁴	21173.95	86363.44
	80120E		80 × 120	7.89	2863.59	223.44 × 10⁴	467.28 × 10⁴	55859.83	77880.10
	80160E		80 × 160	10.29	3739.33	303.04 × 10⁴	1004.90 × 10⁴	75759.18	125611.98
	80200E		80 ×200	12.07	4389.65	396.23 × 10⁴	1877. 10 × 10⁴	92306.33	187710.33
	120120E		120 × 120	11.03	4011.31	677.34 × 10⁴	677.34 × 10⁴	112889.20	112889.20
	120120G		120 × 120	14.23	5174.84	762 .41 × 10⁴	762 .41 × 10⁴	127068.48	127068.48
	160160E		160 × 160	16.08	5846.12	1870.81 × 10⁴	1870.81 × 10⁴	233851.01	233851.01
	200200E		200 ×200	21.72	7896.30	4058.42 × 10⁴	4058.42 × 10⁴	405842.00	405842.00
AMS05	OB40-E		40 ×41.5	1.67	605.88	8.35 × 10⁴	8.29 × 10⁴	4105.00	4145.01
