HRB（哈尔滨轴承）单向推力球轴承平底座圈型

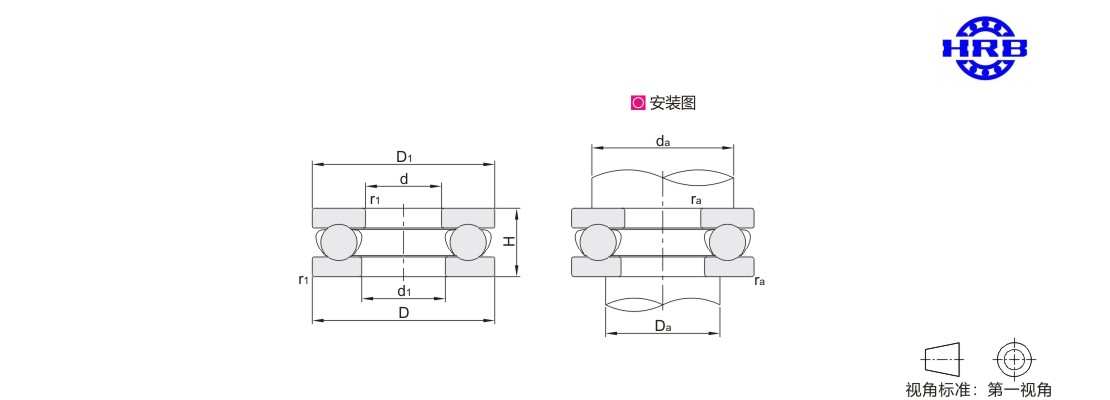

型号	d	d1 (min)	D	D1 (max)	H	r1 ( min)	基本额定载荷(KN)		额定转速(r/min)		安装尺寸			重量(kg) 参考
型号	d	d1 (min)	D	D1 (max)	H	r1 ( min)	Ca(动)	Coa(静)	脂润滑	油润滑	da(min)	Da(max)	ra(max)	重量(kg) 参考
51100-HRB	10	11	24	24	9	0.3	9.32	8.11	7000	9500	19	15	0.3	0.02
51200-HRB	10	12	26	26	11	0.6	12.7	10.4	6000	8000	20	16	0.6	0.03
51101-HRB	12	13	26	26	9	0.3	9.67	9.49	6700	9000	21	17	0.3	0.02
51201-HRB	12	14	28	28	11	0.6	13.2	12.3	6000	8000	22	18	0.6	0.03
51102-HRB	15	16	28	28	9	0.3	10.5	12	6300	8500	23	20	0.3	0.02
51202-HRB	15	17	32	32	12	0.6	13.4	14.5	5300	7000	25	22	0.6	0.04
51103-HRB	17	18	30	30	9	0.3	10.8	13.4	6300	8500	25	22	0.3	0.02
51203-HRB	17	19	35	35	12	0.6	17.2	18.8	5000	6700	28	24	0.6	0.05
51104-HRB	20	21	35	35	10	0.3	15	19.7	5600	7500	29	26	0.3	0.04
51204-HRB	20	22	40	40	14	0.6	21.1	23.9	4500	6000	32	28	0.6	0.07
51105-HRB	25	26	42	42	11		15.4	23.9	4800	6300	35	32		0.06
51205-HRB		27	47	47	15		27.7	36.3	4000	5300	38	34		0.11
51305-HRB			52	52	18	1	35.7	42.1	3400	4500	41	36	1	0.17
51405-HRB			60	60	24	1	55.4	59.8	2600	3600	46	39	1	0.34
51106-HRB	30	32	47	47	11	0.6	16.6	29.4	4500	6000	40	37	0.6	0.07
51206-HRB			52	52	16	0.6	29.3	43.8	3600	4800	43	39	0.6	0.13
51306-HRB			60	60	21	1	47.1	57.2	2800	3800	48	42	1	0.26
51406-HRB			70	70	28	1	72.2	81	2000	3000	54	46	1	0.52
51107-HRB	35	37	52	52	12	0.6	19.1	35.9	4300	5600	45	42	0.6	0.08
51207-HRB			62	62	18	1	39.1	58.6	3000	4000	51	46	1	0.21
51307-HRB			68	68	24	1	55.4	73.9	2400	3400	55	48		0.37
51407-HRB			80	80	32	1.1	86.4	102	1800	2600	62	53		0.77
51108-HRB	40	42	60	60	13	0.6	26.9	51.2	3800	5000	52	48	0.6	0.12
51208-HRB			68	68	19	1	47	74.1	2800	3800	57	51	1	0.26
51308-HRB			78	78	26	1	68.9	95.8	2000	3000	63	55	1	0.54
51109-HRB	45	47	65	65	14	0.6	27.9	57.5	3400	4500	57	53	0.6	0.14
51209-HRB			73	73	20	1	47.5	81.5	2600	3600	62	56	1	0.3
51309-HRB			85	85	28	1	79.5	118	1900	2800	69	61	1	0.68
51110-HRB	50	52	70	70	14	0.6	28	61	3200	4300	62	58	0.6	0.15
51210-HRB			78	78	22	1	54.4	94.4	2400	3400	67	61	1	0.37
51310-HRB			95	95	31	1.1	96.2	146	1800	2600	77	68	1	0.94
51410-HRB			110	110	43	1.5	159	310	1500	2000	86	74	1.5	2
51111-HRB	55	57	78	78	16	0.6	34.7	78.7	2800	3800	69	64	0.6	0.22
51211-HRB			90	90	25	1	69.4	123	1900	2800	76	69	1	0.59
51311-HRB			105	105	35	1.1	126	189	1600	2200	85	75	1	1.31
51411-HRB			120	120	48	1.5	178	360	1300	1800	94	81	1.5	2.55
51112-HRB	60	62	85	85	17	1	40.2	91	2600	3600	75	70	1	0.28
51212-HRB			95	95	26	1	70.6	133	1900	2800	81	74		0.66
51312-HRB			110	110	35	1.1	129	209	1600	2200	90	80		1.38
51412-HRB			130	130	51	1.5	199	400	1100	1600	102	88	1.5	3.1
51113-HRB	65	67	90	90	18	1	47.3	108	2400	3400	80	75	1	0.31
51213-HRB			100	100	27	1	72	144	1800	2600	86	79		0.74
51313-HRB			115	115	36	1.1	139	229	1500	2000	95	85		1.51
51413-HRB		68	140	140	56	2	216	450	1000	1500	110	95	2	4
51114-HRB	70	72	95	95	18	1	47.8	114	2400	3400	85	80	1	0.34
51314-HRB		72	125	125	40	1.1	161	268	1400	1900	103	92	1	2
51414-HRB		73	150	150	60	2	234	500	950	1400	118	102	2	5
51115-HRB	75	77	100	100	19	1	48.1	120	2200	3200	90	85	1	0.38
51215-HRB			110	110	27	1	77.1	172	1700	2400	96	89	1	0.82
51315-HRB			135	135	44	1.5	184	311	1200	1700	111	99	1.5	2.59
51116-HRB	80	82	105	105	19	1	50	130	2000	3000	95	90	1	0.41
51216-HRB			115	115	28	1	86.4	193	1700	2400	101	94	1	0.91
51316-HRB			140	140	44	1.5	189	339	1200	1700	116	104	1.5	2.72
51416-HRB		83	170	170	68	2.1	270	620	850	1200	133	117	2	7.95
51117-HRB		87	110	110	19	1	49.3	131	2000	3000	100	95	1	0.42
51217-HRB	85	88	125	125	31	1	97.9	229	1600	2200	109	101	1	1.25
51317-HRB			150	150	49	1.5	215	389	1100	1600	124	111	1.5	3.52
51417-HRB			180	177	72	2.1	286	680	850	1200	141	124	2	9.45
51118-HRB		92	120	120	22	1	66.5	177	1800	2600	108	102	1	0.65
51218-HRB	90	93	135	135	35	1.1	125	277	1500	2000	117	108	1	1.68
51318-HRB	90	93	155	155	50	1.5	232	410	1000	1500	129	116	1.5	3.73
51120-HRB		102	135	135	25	1	82.7	222	1700	2400	121	114	1	0.96
51220-HRB	100	103	150	150	38	1.1	155	341	1300	1800	130	120	1	2.23
51320-HRB	100	103	170	170	55	1.5	229	560	950	1400	142	128	1.5	4.95
51122-HRB		112	145	145	25	1	87	251	1600	2200	131	124	1	1.05
51222-HRB	110	113	160	160	38	1.1	162	384	1200	1700	140	130	1	2.42
51322-HRB			190	187	63	2	276	720	850	1200	158	142	2	7.85
51422-HRB			230	225	95	3	410	1140	630	850	181	159	2.5	20
51124-HRB	120	122	155	155	25	1	88.9	271	1600	2200	141	134	1	1.12
51224-HRB		123	170	170	39	1.1	163	409	1100	1600	150	140	1	2.67
51324-HRB		123	210	205	70	2.1	325	915	800	1100	173	157	2	11
51126-HRB	130	132	170	170	30	1	111	341	1400	1900	154	146	1	1.71
51226-HRB		133	190	187	45	1.5	186	540	950	1400	166	154	1.5	4
51326-HRB		134	225	220	75	2.1	358	1060	750	1000	186	169	2	13
51128-HRB	140	142	180	178	31	1	113	366	1300	1800	164	156	1	1.86
51228-HRB	140	143	200	197	46	1.5	190	570	950	1400	176	164	1.5	4.35
51130-HRB	150	152	190	188	31	1	117	371	1200	1700	174	166	1	2.17
51230-HRB	150	153	215	212	50	1.5	238	735	900	1300	189	176	1.5	6.1
51132-HRB	160	162	200	198	31	1	120	399	1200	1700	184	176	1	2.34
51232-HRB		163	225	222	51	1.5	242	780	850	1200	199	186	1.5	6.55
51332-HRB		164	270	265	87	3	449	1500	630	850	225	205	2.5	21
51134-HRB	170	172	215	213	34	1.1	131	443	1100	1600	197	188	1	2.96
51234-HRB		173	240	237	55	1.5	286	930	800	1100	212	198	1.5	8.15
51334-HRB		174	280	275	87	3	468	1600	600	800	235	215	2.5	22
51136-HRB	180	183	225	222	34	1.1	134	473	1000	1500	207	198	1	3.08
51236-HRB	180	183	250	247	56	1.5	296	1000	800	1100	222	208	1.5	8.6
51138-HRB	190	193	240	237	37	1.1	172	655	950	1400	220	210	1	4.05
51238-HRB	190	194	270	267	62	2	332	1160	750	1000	238	222	2	12
51140-HRB	200	203	250	247	37	1.1	168	655	950	1400	230	220	1	4.25
51144-HRB	220	223	270	267	37	1.1	178	735	900	1300	250	240	1	4.6
