陶瓷轴承两面带橡胶密封圈（接触式） Si3N4材质深沟球轴承类型

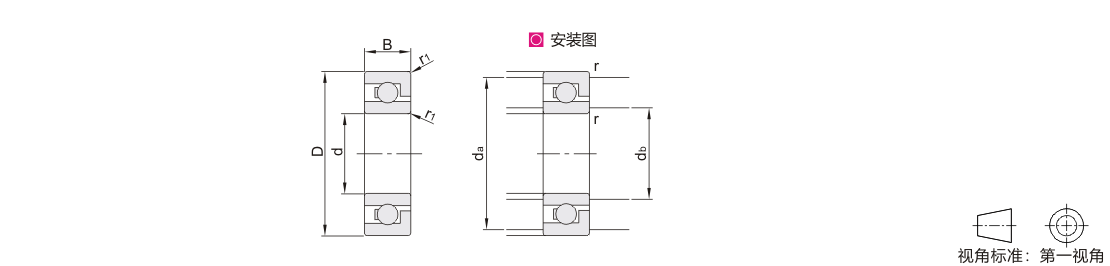

型号		d	D	B	r1	安装尺寸			参考重量 (g)
代码	轴承型号	d	D	B	r1	db(min)	da(max)	r(max)	参考重量 (g)
BBD51 BBD52	683-2RS	3	7	3	0.1	3.9	5.8	0.1	1.44
	693-2RS		8	4	0.15	4.2	6.8	0.15	2.16
	603-2RS		9	5			7.8		2.87
	623-2RS		10	4			8.8		4.65
	633-2RS		13	5		4.6	11.4	0.2	8.6
	684-2RS	4	9	4	0.1	5	7.8	0.1	2.2
	694-2RS		11		0.15	5.2	9.8	0.15	4.7
	604-2RS		12		0.2	5.6	10.4	0.2	6
	624-2RS		13	5	0.2	5.6	11.4	0.2	9
	634-2RS		16		0.3	6	14	0.3	13.1
	685-2RS	5	11		0.15	6.2	9.8	0.2	3.5
	695-2RS		13	4	0.2	6.6	11.4		6.6
	605-2RS		14	5	0.2	6.6	12.4		9.1
	625-2RS		16	5	0.3	7	14	0.3	12.6
	635-2RS		19	6	0.3		17	0.3	21.1
	686-2RS	6	13	5	0.15		11.8	0.2	5.3
	696-2RS		15	5	0.2	7.6	13.4	0.2	9.9
	606-2RS		17	6	0.3	8	15	0.3	14.9
	626-2RS		19	6			17		20.6
	636-2RS		22	7			20		34
	687-2RS	7	14	5	0.15	8.2	12.8	0.15	5.9
	697-2RS		17	5	0.3	9	15	0.3	13.2
	607-2RS		19	6			17		19
	627-2RS		22	7			20		30.9
	637-2RS		26	9			22		57.8
	688-2RS	8	16	5	0.2	9.6	14.4	0.2	12.4
	698-2RS		19	6	0.3	10	17	0.3	17.9
	608-2RS		22	7			20		29.3
	628-2RS		24	8			22		41.2
	638-2RS		28	9			26		68.1
	689-2RS	9	17	4	0.2	10.6	15.4	0.2	9.1
	699-2RS		20	6	0.3	11	18	0.3	20.8
	609-2RS		24	7		11			35.5
	629-2RS		26	8		13	22		47.6
	639-2RS		30	10	0.6	13	24		87.7
	6800-2RS	10	19	5	0.3	12	17		12.8
	6900-2RS		22	6			20		22.2
	6000-2RS		26	8			24		43.7
	6200-2RS		30	9	0.6	14	26	0.6	76.7
	6300-2RS		35	11	0.6		31	0.6	124.7
	6801-2RS	12	21	5	0.3		19	0.3	15.4
	6901-2RS		24	6			22		24.8
	16001-2RS			7			26		46.6
	6001-2RS		28	8			26		49.9
	6201-2RS		32	10	0.6	16	28	0.6	87.7
	6301-2RS		37	12	1	17	32	1	97.7
	6802-2RS	15	24	5	0.3		22	0.3	16.9
	6902-2RS		28	7			26		27
	16002-2RS			8			30		63.7
	6002-2RS		32	9			30		74.7
	6202-2RS		35	11	0.6	19	31	0.6	108.7
	6302-2RS		42	13	1	20	37	1	198.7
	6803-2RS	17	26	5	0.3	19	24	0.3	16.9
	6903-2RS		30	7	0.3	19	28	0.3	41.1
	16003-2RS		35	8			33		78.7
	6003-2RS		35	10			33		98.7
	6203-2RS		40	12	0.6	21	36	0.6	160.7
	6303-2RS		47	14	1	22	42	1	266.7
	6804-2RS	20	32	7	0.3	22	30	0.3	40.7
	6904-2RS		37	9			35		137.7
	16004-2RS		42	8			40		114.7
	6004-2RS		42	12	0.6	24	38	0.6	161.7
	6204-2RS		47	14	1	25	42	1	258.7
	6304-2RS		52	15	1.1	26.5	45.5	1	348.7
6805-2RS	25	37	7	0.3	27	35	0.3	46.7
6905-2RS		42	9			40		102.7
16005-2RS		47	8			45		140.7
6005-2RS		47	12	0.6	29	43	0.6	188.7
6205-2RS		52	15	1	30	47	1	308.7
6305-2RS		62	17	1.1	31.5	55.5	1	563.7
6806-2RS	30	42	7	0.3	32	40	0.3	57.7
6906-2RS		47	9			45		124.7
16006-2RS		55	9			53		207.7
6006-2RS		55	13	1	35	50	1	275.7
6206-2RS		62	16	1	35	57		471.7
6306-2RS		72	19	1.1	36.5	65.5		826.7
6807-2RS	35	47	7	0.3	37	45	0.3	64.7
6907-2RS		55	10	0.6	39	51	0.6	178.7
16007-2RS		62	9	0.3	37	60	0.3	258.7
6007-2RS		62	14	1	40	57	1	362.7
6207-2RS		72	17	1.1	41.5	65.5	1	675.7
6307-2RS		80	21	1.5	43	72	1.5	1099.7
6808-2RS	40	52	7	0.3	42	50	0.3	69.7
6908-2RS		62	12	0.6	44	58	0.6	252.9
16008-2RS		68	9	0.3	42	66	0.3	305.7
6008-2RS		68	15	1	45	63	1	457.7
6208-2RS		80	18	1.1	46.5	73.5	1	1741
6308-2RS		90	23	1.5	48	82	1.5	1521
6809-2RS	45	58	7	0.3	47	56	0.3	90.7
6909-2RS		68	12	0.6	49	64	0.6	304.7
16009-2RS		75	10	0.6	49	71	0.6	402.7
6009-2RS		75	16	1	50	70	1	576.7
6209-2RS		85	19	1.1	51.5	78.5	1	996.7
6309-2RS		100	25	1.5	53	92	1.5	1976
6810-2RS	50	65	7	0.3	52	63	0.3	119.7
6910-2RS		72	12	0.6	54	68	0.6	326.7
16010-2RS		80	10	0.6	54	76	0.6	414.7
6010-2RS		80	16	1	55	75	1	620.7
6210-2RS		90	20	1.1	56.5	83.5	1	1089
6310-2RS		110	27	2	59	101	2	2521
