威浦 标准型 圆形连接器 WS系列 前螺母插座
品牌名称：
威浦
条件筛选：
外壳材质 锌合金（镀铬）
类型 标准型
系列 WS-ZMQ系列
产品种类 螺纹圆形连接器
连接方式 螺纹连接
类别名称 前螺母插座
参数筛选：
安装直径
端头形状
芯数
产品代码：
有 70 个备选型号
登录后可查看价格、加入购物车、一键购买
立即登录
技术图档
全部型号
3D预览
产品简介
材质图

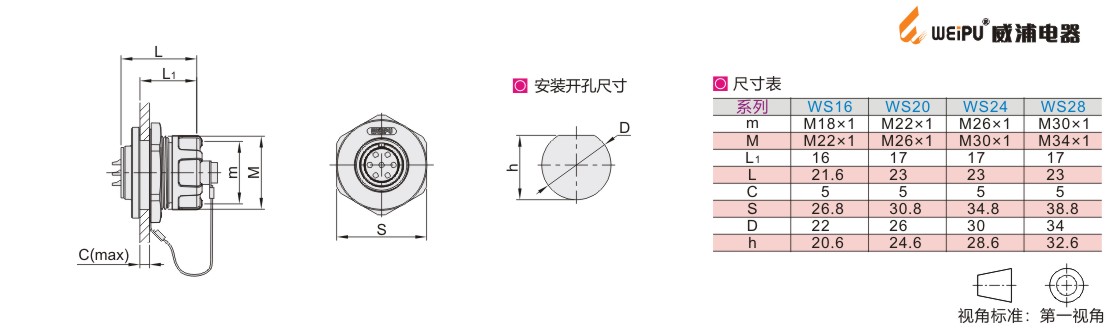

参数图
材质图
| 代码 | 类型 | 接插方式 | 材质 | ||
| 外壳 | 绝缘体 | 接触件 | |||
| WS系列 | 前螺母 插座 |
螺纹连接 | 锌合金 (镀铬) |
热塑塑料PPS | 铜(镀金) |
参数图
插针
| 型号 | 配合直径 | 芯数 | 适配插头(常用) | 以下系列型号均可适配 | |
| 直式电缆护套插头(TQ) | 弯式双压板电缆插头(TS) | ||||
| WS16J2ZMQ | 16 | 2 | WS16K2TQ | WS16K2TS | 适配插头 WS...TP WS...TD WS...TR WS...TC 详见产品简介 插头插座配置表 |
| WS16J3ZMQ | 3 | WS16K3TQ | WS16K3TS | ||
| WS16J4ZMQ | 4 | WS16K4TQ | WS16K4TS | ||
| WS16J5ZMQ | 5 | WS16K5TQ | WS16K5TS | ||
| WS16J7ZMQ | 7 | WS16K7TQ | WS16K7TS | ||
| WS16J9ZMQ | 9 | WS16K9TQ | WS16K9TS | ||
| WS16J10ZMQ | 10 | WS16K10TQ | WS16K10TS | ||
| WS20J2ZMQ | 20 | 2 | WS20K2TQ | WS20K2TS | |
| WS20J3ZMQ | 3 | WS20K3TQ | WS20K3TS | ||
| WS20J4ZMQ | 4 | WS20K4TQ | WS20K4TS | ||
| WS20J5ZMQ | 5 | WS20K5TQ | WS20K5TS | ||
| WS20J6ZMQ | 6 | WS20K6TQ | WS20K6TS | ||
| WS20J7ZMQ | 7 | WS20K7TQ | WS20K7TS | ||
| WS20J9ZMQ | 9 | WS20K9TQ | WS20K9TS | ||
| WS20J12ZMQ | 12 | WS20K12TQ | WS20K12TS | ||
| WS24J2ZMQ | 24 | 2 | WS24K2TQ | WS24K2TS | |
| WS24J3ZMQ | 3 | WS24K3TQ | WS24K3TS | ||
| WS24J4ZMQ | 4 | WS24K4TQ | WS24K4TS | ||
| WS24J9ZMQ | 9 | WS24K9TQ | WS24K9TS | ||
| WS24J10ZMQ | 10 | WS24K10TQ | WS24K10TS | ||
| WS24J12ZMQ | 12 | WS24K12TQ | WS24K12TS | ||
| WS24J19ZMQ | 19 | WS24K19TQ | WS24K19TS | ||
| WS28J2ZMQ | 28 | 2 | WS28K2TQ | WS28K2TS | |
| WS28J3ZMQ | 3 | WS28K3TQ | WS28K3TS | ||
| WS28J4ZMQ | 4 | WS28K4TQ | WS28K4TS | ||
| WS28J7ZMQ | 7 | WS28K7TQ | WS28K7TS | ||
| WS28J8ZMQ | 8 | WS28K8TQ | WS28K8TS | ||
| WS28J9ZMQ | 9 | WS28K9TQ | WS28K9TS | ||
| WS28J10ZMQ | 10 | WS28K10TQ | WS28K10TS | ||
| WS28J12ZMQ | 12 | WS28K12TQ | WS28K12TS | ||
| WS28J16ZMQ | 16 | WS28K16TQ | WS28K16TS | ||
| WS28J17ZMQ | 17 | WS28K17TQ | WS28K17TS | ||
| WS28J20ZMQ | 20 | WS28K20TQ | WS28K20TS | ||
| WS28J24ZMQ | 24 | WS28K24TQ | WS28K24TS | ||
| WS28J26ZMQ | 26 | WS28K26TQ | WS28K26TS | ||
插孔
| 代码型号 | 配合直径 | 芯数 | 适配插头(常用) | 以下系列型号均可适配 | |
| 直式电缆护套插头(TQ) | 弯式双压板电缆插头(TS) | ||||
| WS16K2ZMQ | 16 | 2 | WS16J2TQ | WS16J2TS | 适配插头 WS...TP WS...TD WS...TR WS...TC 详见产品简介 插头插座配置表 |
| WS16K3ZMQ | 3 | WS16J3TQ | WS16J3TS | ||
| WS16K4ZMQ | 4 | WS16J4TQ | WS16J4TS | ||
| WS16K5ZMQ | 5 | WS16J5TQ | WS16J5TS | ||
| WS16K7ZMQ | 7 | WS16J7TQ | WS16J7TS | ||
| WS16K9ZMQ | 9 | WS16J9TQ | WS16J9TS | ||
| WS16K10ZMQ | 10 | WS16J10TQ | WS16J10TS | ||
| WS20K2ZMQ | 20 | 2 | WS20J2TQ | WS20J2TS | |
| WS20K3ZMQ | 3 | WS20J3TQ | WS20J3TS | ||
| WS20K4ZMQ | 4 | WS20J4TQ | WS20J4TS | ||
| WS20K5ZMQ | 5 | WS20J5TQ | WS20J5TS | ||
| WS20K6ZMQ | 6 | WS20J6TQ | WS20J6TS | ||
| WS20K7ZMQ | 7 | WS20J7TQ | WS20J7TS | ||
| WS20K9ZMQ | 9 | WS20J9TQ | WS20J9TS | ||
| WS20K12ZMQ | 12 | WS20J12TQ | WS20J12TS | ||
| WS24K2ZMQ | 24 | 2 | WS24J2TQ | WS24J2TS | |
| WS24K3ZMQ | 3 | WS24J3TQ | WS24J3TS | ||
| WS24K4ZMQ | 4 | WS24J4TQ | WS24J4TS | ||
| WS24K9ZMQ | 9 | WS24J9TQ | WS24J9TS | ||
| WS24K10ZMQ | 10 | WS24J10TQ | WS24J10TS | ||
| WS24K12ZMQ | 12 | WS24J12TQ | WS24J12TS | ||
| WS24K19ZMQ | 19 | WS24J19TQ | WS24J19TS | ||
| WS28K2ZMQ | 28 | 2 | WS28J2TQ | WS28J2TS | |
| WS28K3ZMQ | 3 | WS28J3TQ | WS28J3TS | ||
| WS28K4ZMQ | 4 | WS28J4TQ | WS28J4TS | ||
| WS28K7ZMQ | 7 | WS28J7TQ | WS28J7TS | ||
| WS28K8ZMQ | 8 | WS28J8TQ | WS28J8TS | ||
| WS28K9ZMQ | 9 | WS28J9TQ | WS28J9TS | ||
| WS28K10ZMQ | 10 | WS28J10TQ | WS28J10TS | ||
| WS28K12ZMQ | 12 | WS28J12TQ | WS28J12TS | ||
| WS28K16ZMQ | 16 | WS28J16TQ | WS28J16TS | ||
| WS28K17ZMQ | 17 | WS28J17TQ | WS28J17TS | ||
| WS28K20ZMQ | 20 | WS28J20TQ | WS28J20TS | ||
| WS28K24ZMQ | 24 | WS28J24TQ | WS28J24TS | ||
| WS28K26ZMQ | 26 | WS28J26TQ | WS28J26TS | ||
技术参数
| 接插方式 | 螺纹连接 |
| 接线方式 | 焊接 |
| 接插次数 | 500次 |
| 温度范围 | -40℃~+85℃ |
-
