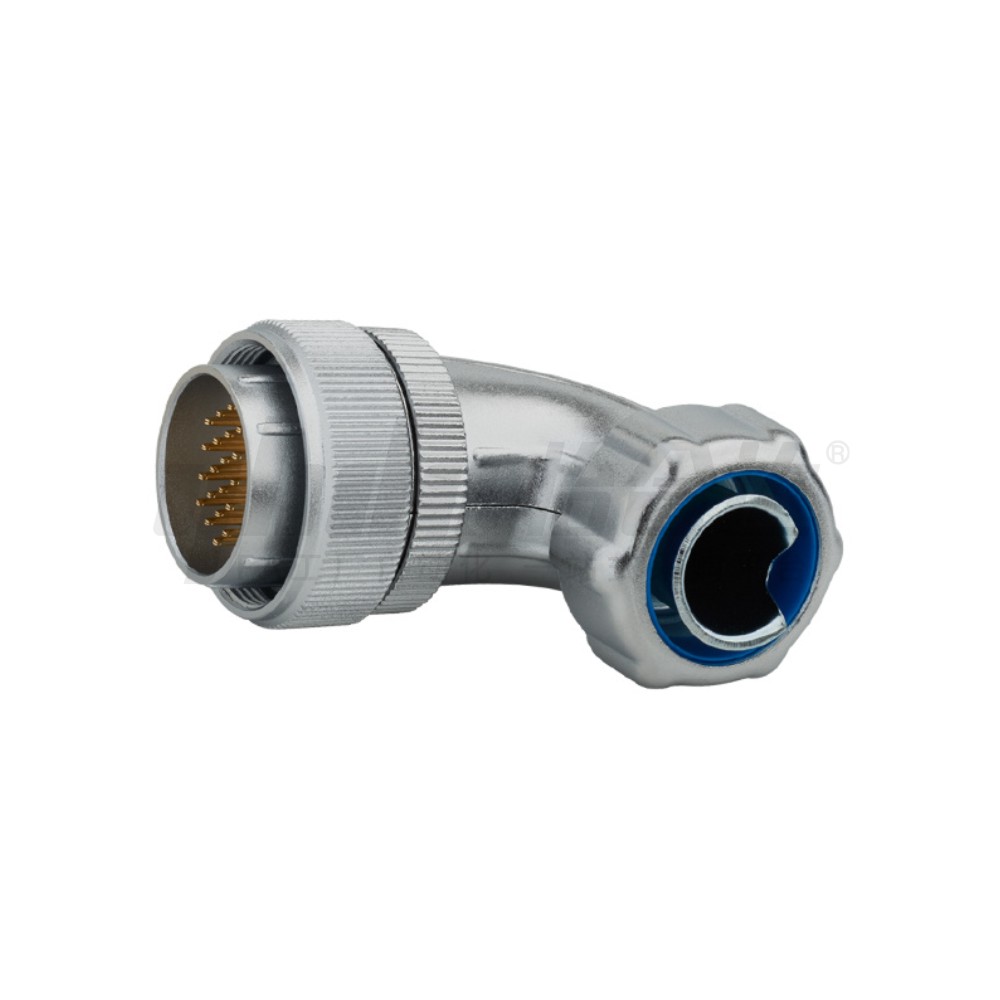

威浦 标准型 圆形连接器 WS系列 弯式金属软管插头
品牌名称：
威浦
条件筛选：
外壳材质 锌合金（镀铬）
类型 标准型
系列 WS-TR系列
产品种类 螺纹圆形连接器
连接方式 螺纹连接
类别名称 弯式金属软管插头
参数筛选：
安装直径
端头形状
芯数
产品代码：
有 106 个备选型号
登录后可查看价格、加入购物车、一键购买
立即登录
技术图档
全部型号
3D预览
产品简介
材质图

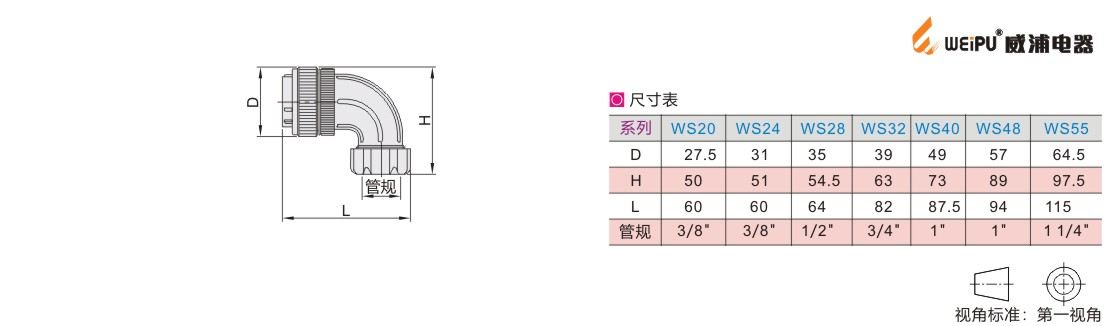

参数图
材质图
| 代码 | 类型 | 接插方式 | 材质 | ||
| 外壳 | 绝缘体 | 接触件 | |||
| WS系列 | 弯式金属软管 插头 |
螺纹连接 | 锌合金 (镀铬) |
热塑塑料PPS | 铜(镀金) |
参数图
插针
| 型号 | 配合直径 | 芯数 | 适配插座(常用) | 以下系列型号均可适配 | ||
| 方形法兰插座(Z) | 后螺母插座(ZM) | |||||
| WS20J2TR | 20 | 2 | WS20 K2Z | WS20 K2ZM | 适配插座 WS. . .ZMQ WS. . .ZG WS. . .ZYB WS. . .ZY WS. . .ZQB WS. . .ZQ WS. . .ZPB WS. . .ZP WS. . .ZDB WS. . .ZD WS. . .ZR WS. . .ZS WS. . .ZC 详见产品简介 插头插座配置表 |
|
| WS20J3TR | 3 | WS20 K3Z | WS20 K3ZM | |||
| WS20J4TR | 4 | WS20 K4Z | WS20 K4ZM | |||
| WS20J5TR | 5 | WS20 K5Z | WS20 K5ZM | |||
| WS20J6TR | 6 | WS20 K6Z | WS20 K6ZM | |||
| WS20J7TR | 7 | WS20 K7Z | WS20 K7ZM | |||
| WS20J9TR | 9 | WS20 K9Z | WS20 K9ZM | |||
| WS20J12TR | 12 | WS20 K12Z | WS20 K12ZM | |||
| WS24J2TR | 24 | 2 | WS24K2Z | WS24K2ZM | ||
| WS24J3TR | 3 | WS24K3Z | WS24K3ZM | |||
| WS24J4TR | 4 | WS24K4Z | WS24K4ZM | |||
| WS24J9TR | 9 | WS24K9Z | WS24K9ZM | |||
| WS24J10TR | 10 | WS24K10Z | WS24K10ZM | |||
| WS24J12TR | 12 | WS24K12Z | WS24K12ZM | |||
| WS24J19TR | 19 | WS24K19Z | WS24K19ZM | |||
| WS28J2TR | 28 | 2 | WS28 K2Z | WS28 K2ZM | ||
| WS28J3TR | 3 | WS28 K3Z | WS28 K3ZM | |||
| WS28J4TR | 4 | WS28 K4Z | WS28 K4ZM | |||
| WS28J7TR | 7 | WS28 K7Z | WS28 K7ZM | |||
| WS28J8TR | 8 | WS28 K8Z | WS28 K8ZM | |||
| WS28J9TR | 9 | WS28 K9Z | WS28 K9ZM | |||
| WS28J10TR | 10 | WS28 K10Z | WS28 K10ZM | |||
| WS28J12TR | 12 | WS28 K12Z | WS28 K12ZM | |||
| WS28J16TR | 16 | WS28 K16Z | WS28 K16ZM | |||
| WS28J17TR | 17 | WS28 K17Z | WS28 K17ZM | |||
| WS28J20TR | 20 | WS28 K20Z | WS28 K20ZM | |||
| WS28J24TR | 24 | WS28 K24Z | WS28 K24ZM | |||
| WS28J26TR | 26 | WS28 K26Z | WS28 K26ZM | |||
| WS32J4TR | 32 | 4 | WS32K4Z | WS32K4ZM | ||
| WS32J6TR | 6 | WS32K6Z | WS32K6ZM | |||
| WS32J8TR | 8 | WS32K8Z | WS32K8ZM | |||
| WS32J10TR | 10 | WS32K10Z | WS32K10ZM | |||
| WS32J11TR | 11 | WS32K11Z | WS32K11ZM | |||
| WS32J12TR | 12 | WS32K12Z | WS32K12ZM | |||
| WS32J13TR | 13 | WS32K13Z | WS32K13ZM | |||
| WS32J19TR | 19 | WS32K19Z | WS32K19ZM | |||
| WS40J5TR | 40 | 5 | WS40 K5Z | WS40 K5ZM | ||
| WS40J9TR | 9 | WS40 K9Z | WS40 K9ZM | |||
| WS40J15TR | 15 | WS40 K15Z | WS40 K15ZM | |||
| WS40J26TR | 26 | WS40 K26Z | WS40 K26ZM | |||
| WS40J31TR | 31 | WS40 K31Z | WS40 K31ZM | |||
| WS40J52TR | 52 | WS40 K52Z | WS40 K52ZM | |||
| WS48J5TR | 48 | 5 | WS48 K5Z | WS48 K5ZM | ||
| WS48J7TR | 7 | WS48 K7Z | WS48 K7ZM | |||
| WS48J20TR | 20 | WS48 K20Z | WS48 K20ZM | |||
| WS48J27TR | 27 | WS48 K27Z | WS48 K27ZM | |||
| WS48J38TR | 38 | WS48 K38Z | WS48 K38ZM | |||
| WS48J42TR | 42 | WS48 K42Z | WS48 K42ZM | |||
| WS55J4TR | 55 | 4 | WS55K4Z | WS55K4ZM | ||
| WS55J7TR | 7 | WS55K7Z | WS55K7ZM | |||
| WS55J40TR | 40 | WS55K40Z | WS55K40ZM | |||
| WS55J53TR | 53 | WS55K53Z | WS55K53ZM | |||
| WS55J61TR | 61 | WS55K61Z | WS55K61ZM | |||
插孔
| 型号 | 配合直径 | 芯数 | 适配插座(常用) | 以下系列型号均可适配 | |
| 方形法兰插座(Z) | 后螺母插座(ZM) | ||||
| WS20K2TR | 20 | 2 | WS20J2Z | WS20J2ZM | 适配插座 WS. . .ZMQ WS. . .ZG WS. . .ZYB WS. . .ZY WS. . .ZQB WS. . .ZQ WS. . .ZPB WS. . .ZP WS. . .ZDB WS. . .ZD WS. . .ZR WS. . .ZS WS. . .ZC 详见产品简介 插头插座配置表 |
| WS20K3TR | 3 | WS20J3Z | WS20J3ZM | ||
| WS20K4TR | 4 | WS20J4Z | WS20J4ZM | ||
| WS20K5TR | 5 | WS20J5Z | WS20J5ZM | ||
| WS20K6TR | 6 | WS20J6Z | WS20J6ZM | ||
| WS20K7TR | 7 | WS20J7Z | WS20J7ZM | ||
| WS20K9TR | 9 | WS20J9Z | WS20J9ZM | ||
| WS20K12TR | 12 | WS20J12Z | WS20J12ZM | ||
| WS24K2TR | 24 | 2 | WS24J2Z | WS24J2ZM | |
| WS24K3TR | 3 | WS24J3Z | WS24J3ZM | ||
| WS24K4TR | 4 | WS24J4Z | WS24J4ZM | ||
| WS24K9TR | 9 | WS24J9Z | WS24J9ZM | ||
| WS24K10TR | 10 | WS24J10Z | WS24J10ZM | ||
| WS24K12TR | 12 | WS24J12Z | WS24J12ZM | ||
| WS24K19TR | 19 | WS24J19Z | WS24J19ZM | ||
| WS28K2TR | 28 | 2 | WS28J2Z | WS28J2ZM | |
| WS28K3TR | 3 | WS28J3Z | WS28J3ZM | ||
| WS28K4TR | 4 | WS28J4Z | WS28J4ZM | ||
| WS28K7TR | 7 | WS28J7Z | WS28J7ZM | ||
| WS28K8TR | 8 | WS28J8Z | WS28J8ZM | ||
| WS28K9TR | 9 | WS28J9Z | WS28J9ZM | ||
| WS28K10TR | 10 | WS28J10Z | WS28J10ZM | ||
| WS28K12TR | 12 | WS28J12Z | WS28J12ZM | ||
| WS28K16TR | 16 | WS28J16Z | WS28J16ZM | ||
| WS28K17TR | 17 | WS28J17Z | WS28J17ZM | ||
| WS28K20TR | 20 | WS28J20Z | WS28J20ZM | ||
| WS28K24TR | 24 | WS28J24Z | WS28J24ZM | ||
| WS28K26TR | 26 | WS28J26Z | WS28J26ZM | ||
| WS32K4TR | 32 | 4 | WS32J4Z | WS32J4ZM | |
| WS32K6TR | 6 | WS32J6Z | WS32J6ZM | ||
| WS32K8TR | 8 | WS32J8Z | WS32J8ZM | ||
| WS32K10TR | 10 | WS32J10Z | WS32J10ZM | ||
| WS32K11TR | 11 | WS32J11Z | WS32J11ZM | ||
| WS32K12TR | 12 | WS32J12Z | WS32J12ZM | ||
| WS32K13TR | 13 | WS32J13Z | WS32J13ZM | ||
| WS32K19TR | 19 | WS32J19Z | WS32J19ZM | ||
| WS40K5TR | 40 | 5 | WS40J5Z | WS40J5ZM | |
| WS40K9TR | 9 | WS40J9Z | WS40J9ZM | ||
| WS40K15TR | 15 | WS40J15Z | WS40J15ZM | ||
| WS40K26TR | 26 | WS40J26Z | WS40J26ZM | ||
| WS40K31TR | 31 | WS40J31Z | WS40J31ZM | ||
| WS40K52TR | 52 | WS40J52Z | WS40J52ZM | ||
| WS48K5TR | 48 | 5 | WS48J5Z | WS48J5ZM | |
| WS48K7TR | 7 | WS48J7Z | WS48J7ZM | ||
| WS48K20TR | 20 | WS48J20Z | WS48J20ZM | ||
| WS48K27TR | 27 | WS48J27Z | WS48J27ZM | ||
| WS48K38TR | 38 | WS48J38Z | WS48J38ZM | ||
| WS48K42TR | 42 | WS48J42Z | WS48J42ZM | ||
| WS55K4TR | 55 | 4 | WS55J4Z | WS55J4ZM | |
| WS55K7TR | 7 | WS55J7Z | WS55J7ZM | ||
| WS55K40TR | 40 | WS55J40Z | WS55J40ZM | ||
| WS55K53TR | 53 | WS55J53Z | WS55J53ZM | ||
| WS55K61TR | 61 | WS55J61Z | WS55J61ZM | ||
技术参数
| 接插方式 | 螺纹连接 |
| 接线方式 | 焊接 |
| 接插次数 | 500次 |
| 温度范围 | -40℃~+85℃ |
-
