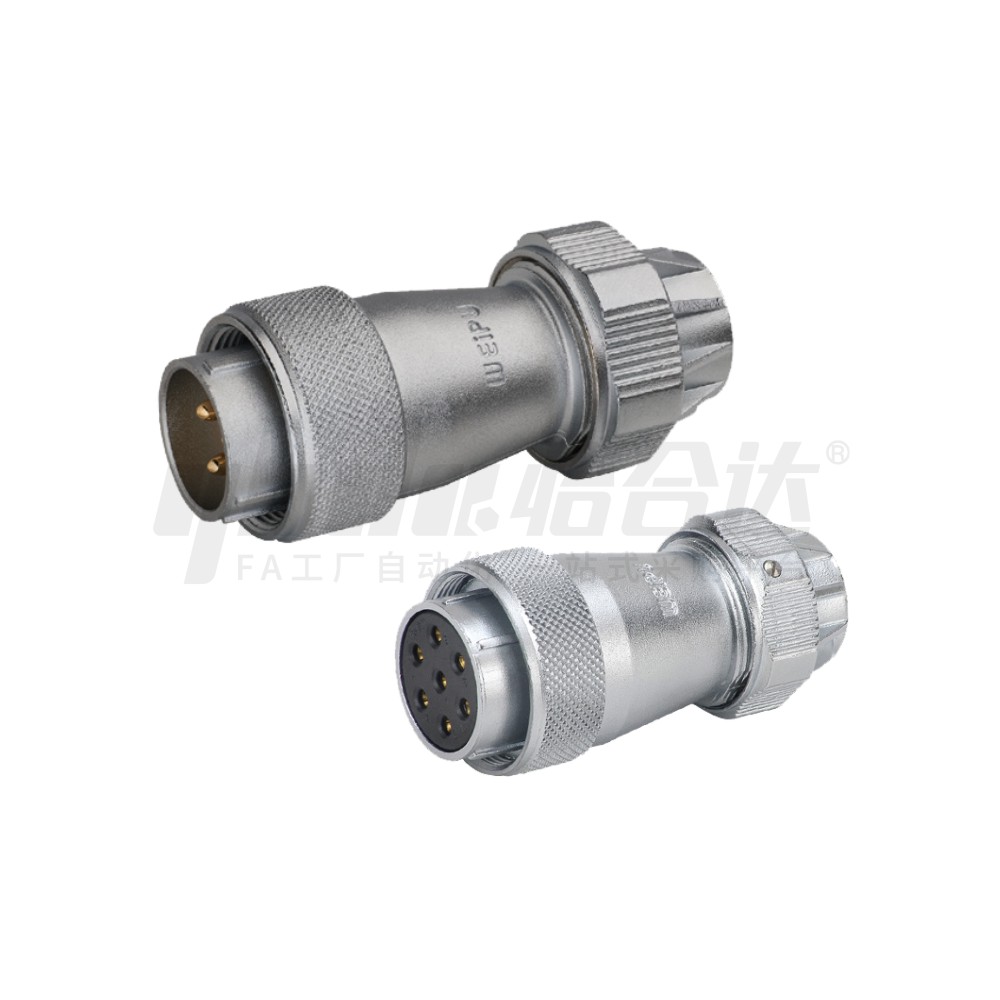

威浦 WF系列 防水型 圆形连接器 直式夹爪紧固插头
品牌名称：
威浦
条件筛选：
外壳材质 锌合金（镀铬）
类型 防水型
系列 WF-TE系列
产品种类 螺纹圆形连接器
连接方式 螺纹连接
类别名称 直式夹爪紧固插头
参数筛选：
安装直径
端头形状
芯数
产品代码：
有 120 个备选型号
登录后可查看价格、加入购物车、一键购买
立即登录
技术图档
全部型号
3D预览
产品简介
材质图
参数图
材质图

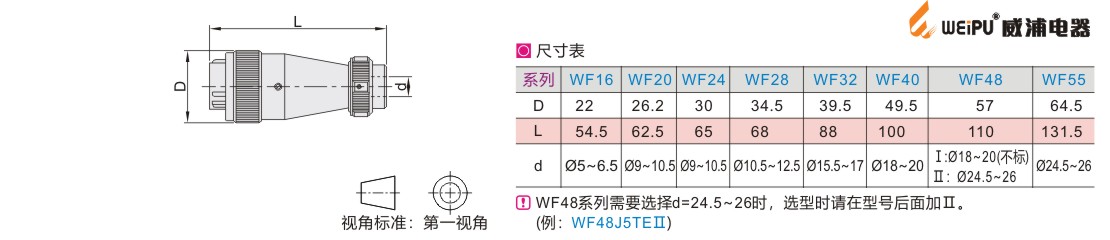

| 代码 | 类型 | 接插方式 | 材质 | 防护等级 | ||
| 外壳 | 绝缘体 | 接触件 | ||||
| WF系列 | 直式夹爪紧固 插头 |
螺纹连接 | 锌合金 (镀铬) |
热塑塑料PPS | 铜(镀金) | IP67 |
参数图
插针
| 型号 | 配合直径 | 芯数 | 适配插座(常用) | 以下系列型号均可适配 | |
| 方形法兰插座(Z) | 后螺母插座(ZM) | ||||
| WF16J2TE | 16 | 2 | WF16 K2Z | WF16 K2ZM | 适配插座 WF. . .ZMQ WF. . .ZG WF. . .ZAB WF. . .ZA WF. . .ZNB WF. . .ZN WF. . .ZEB WF. . .ZE WF. . .ZIB WF. . .ZI 详见产品简介 插头插座配置表 |
| WF16J3TE | 3 | WF16 K3Z | WF16 K3ZM | ||
| WF16J4TE | 4 | WF16 K4Z | WF16 K4ZM | ||
| WF16J5TE | 5 | WF16 K5Z | WF16 K5ZM | ||
| WF16J7TE | 7 | WF16 K7Z | WF16 K7ZM | ||
| WF16J9TE | 9 | WF16 K9Z | WF16 K9ZM | ||
| WF16J10TE | 10 | WF16 K10Z | WF16 K10ZM | ||
| WF20J2TE | 20 | 2 | WF20 K2Z | WF20 K2ZM | |
| WF20J3TE | 3 | WF20 K3Z | WF20 K3ZM | ||
| WF20J4TE | 4 | WF20 K4Z | WF20 K4ZM | ||
| WF20J5TE | 5 | WF20 K5Z | WF20 K5ZM | ||
| WF20J6TE | 6 | WF20 K6Z | WF20 K6ZM | ||
| WF20J7TE | 7 | WF20 K7Z | WF20 K7ZM | ||
| WF20J9TE | 9 | WF20 K9Z | WF20 K9ZM | ||
| WF20J12TE | 12 | WF20 K12Z | WF20 K12ZM | ||
| WF24J2TE | 24 | 2 | WF24K2Z | WF24K2ZM | |
| WF24J3TE | 3 | WF24K3Z | WF24K3ZM | ||
| WF24J4TE | 4 | WF24K4Z | WF24K4ZM | ||
| WF24J9TE | 9 | WF24K9Z | WF24K9ZM | ||
| WF24J10TE | 10 | WF24K10Z | WF24K10ZM | ||
| WF24J12TE | 12 | WF24K12Z | WF24K12ZM | ||
| WF24J19TE | 19 | WF24K19Z | WF24K19ZM | ||
| WF28J2TE | 28 | 2 | WF28 K2Z | WF28 K2ZM | |
| WF28J3TE | 3 | WF28 K3Z | WF28 K3ZM | ||
| WF28J4TE | 4 | WF28 K4Z | WF28 K4ZM | ||
| WF28J7TE | 7 | WF28 K7Z | WF28 K7ZM | ||
| WF28J8TE | 8 | WF28 K8Z | WF28 K8ZM | ||
| WF28J9TE | 9 | WF28 K9Z | WF28 K9ZM | ||
| WF28J10TE | 10 | WF28 K10Z | WF28 K10ZM | ||
| WF28J12TE | 12 | WF28 K12Z | WF28 K12ZM | ||
| WF28J16TE | 16 | WF28 K16Z | WF28 K16ZM | ||
| WF28J17TE | 17 | WF28 K17Z | WF28 K17ZM | ||
| WF28J20TE | 20 | WF28 K20Z | WF28 K20ZM | ||
| WF28J24TE | 24 | WF28 K24Z | WF28 K24ZM | ||
| WF28J26TE | 26 | WF28 K26Z | WF28 K26ZM | ||
| WF32J4TE | 32 | 4 | WF32K4Z | WF32K4ZM | |
| WF32J6TE | 6 | WF32K6Z | WF32K6ZM | ||
| WF32J8TE | 8 | WF32K8Z | WF32K8ZM | ||
| WF32J10TE | 10 | WF32K10Z | WF32K10ZM | ||
| WF32J11TE | 11 | WF32K11Z | WF32K11ZM | ||
| WF32J12TE | 12 | WF32K12Z | WF32K12ZM | ||
| WF32J13TE | 13 | WF32K13Z | WF32K13ZM | ||
| WF32J19TE | 19 | WF32K19Z | WF32K19ZM | ||
| WF40J5TE | 40 | 5 | WF40 K5Z | WF40 K5ZM | |
| WF40J9TE | 9 | WF40 K9Z | WF40 K9ZM | ||
| WF40J15TE | 15 | WF40 K15Z | WF40 K15ZM | ||
| WF40J26TE | 26 | WF40 K26Z | WF40 K26ZM | ||
| WF40J31TE | 31 | WF40 K31Z | WF40 K31ZM | ||
| WF40J52TE | 52 | WF40 K52Z | WF40 K52ZM | ||
| WF48J5TE | 48 | 5 | WF48 K5Z | WF48 K5ZM | |
| WF48J7TE | 7 | WF48 K7Z | WF48 K7ZM | ||
| WF48J20TE | 20 | WF48 K20Z | WF48 K20ZM | ||
| WF48J27TE | 27 | WF48 K27Z | WF48 K27ZM | ||
| WF48J38TE | 38 | WF48 K38Z | WF48 K38ZM | ||
| WF48J42TE | 42 | WF48 K42Z | WF48 K42ZM | ||
| WF55J4TE | 55 | 4 | WF55K4Z | WF55K4ZM | |
| WF55J7TE | 7 | WF55K7Z | WF55K7ZM | ||
| WF55J40TE | 40 | WF55K40Z | WF55K40ZM | ||
| WF55J53TE | 53 | WF55K53Z | WF55K53ZM | ||
| WF55J61TE | 61 | WF55K61Z | WF55K61ZM | ||
插孔
| 型号 | 配合直径 | 芯数 | 适配插座(常用) | 以下系列型号均可适配 | |
| 方形法兰插座(Z) | 后螺母插座(ZM) | ||||
| WF16K2TE | 16 | 2 | WF16J2Z | WF16J2ZM | 适配插座 WF. . .ZMQ WF. . .ZG WF. . .ZAB WF. . .ZA WF. . .ZNB WF. . .ZN WF. . .ZEB WF. . .ZE WF. . .ZIB WF. . .ZI 详见产品简介 插头插座配置表 |
| WF16K3TE | 3 | WF16J3Z | WF16J3ZM | ||
| WF16K4TE | 4 | WF16J4Z | WF16J4ZM | ||
| WF16K5TE | 5 | WF16J5Z | WF16J5ZM | ||
| WF16K7TE | 7 | WF16J7Z | WF16J7ZM | ||
| WF16K9TE | 9 | WF16J9Z | WF16J9ZM | ||
| WF16K10TE | 10 | WF16J10Z | WF16J10ZM | ||
| WF20K2TE | 20 | 2 | WF20J2Z | WF20J2ZM | |
| WF20K3TE | 3 | WF20J3Z | WF20J3ZM | ||
| WF20K4TE | 4 | WF20J4Z | WF20J4ZM | ||
| WF20K5TE | 5 | WF20J5Z | WF20J5ZM | ||
| WF20K6TE | 6 | WF20J6Z | WF20J6ZM | ||
| WF20K7TE | 7 | WF20J7Z | WF20J7ZM | ||
| WF20K9TE | 9 | WF20J9Z | WF20J9ZM | ||
| WF20K12TE | 12 | WF20J12Z | WF20J12ZM | ||
| WF24K2TE | 24 | 2 | WF24J2Z | WF24J2ZM | |
| WF24K3TE | 3 | WF24J3Z | WF24J3ZM | ||
| WF24K4TE | 4 | WF24J4Z | WF24J4ZM | ||
| WF24K9TE | 9 | WF24J9Z | WF24J9ZM | ||
| WF24K10TE | 10 | WF24J10Z | WF24J10ZM | ||
| WF24K12TE | 12 | WF24J12Z | WF24J12ZM | ||
| WF24K19TE | 19 | WF24J19Z | WF24J19ZM | ||
| WF28K2TE | 28 | 2 | WF28J2Z | WF28J2ZM | |
| WF28K3TE | 3 | WF28J3Z | WF28J3ZM | ||
| WF28K4TE | 4 | WF28J4Z | WF28J4ZM | ||
| WF28K7TE | 7 | WF28J7Z | WF28J7ZM | ||
| WF28K8TE | 8 | WF28J8Z | WF28J8ZM | ||
| WF28K9TE | 9 | WF28J9Z | WF28J9ZM | ||
| WF28K10TE | 10 | WF28J10Z | WF28J10ZM | ||
| WF28K12TE | 12 | WF28J12Z | WF28J12ZM | ||
| WF28K16TE | 16 | WF28J16Z | WF28J16ZM | ||
| WF28K17TE | 17 | WF28J17Z | WF28J17ZM | ||
| WF28K20TE | 20 | WF28J20Z | WF28J20ZM | ||
| WF28K24TE | 24 | WF28J24Z | WF28J24ZM | ||
| WF28K26TE | 26 | WF28J26Z | WF28J26ZM | ||
| WF32K4TE | 32 | 4 | WF32J4Z | WF32J4ZM | |
| WF32K6TE | 6 | WF32J6Z | WF32J6ZM | ||
| WF32K8TE | 8 | WF32J8Z | WF32J8ZM | ||
| WF32K10TE | 10 | WF32J10Z | WF32J10ZM | ||
| WF32K11TE | 11 | WF32J11Z | WF32J11ZM | ||
| WF32K12TE | 12 | WF32J12Z | WF32J12ZM | ||
| WF32K13TE | 13 | WF32J13Z | WF32J13ZM | ||
| WF32K19TE | 19 | WF32J19Z | WF32J19ZM | ||
| WF40K5TE | 40 | 5 | WF40J5Z | WF40J5ZM | |
| WF40K9TE | 9 | WF40J9Z | WF40J9ZM | ||
| WF40K15TE | 15 | WF40J15Z | WF40J15ZM | ||
| WF40K26TE | 26 | WF40J26Z | WF40J26ZM | ||
| WF40K31TE | 31 | WF40J31Z | WF40J31ZM | ||
| WF40K52TE | 52 | WF40J52Z | WF40J52ZM | ||
| WF48K5TE | 48 | 5 | WF48J5Z | WF48J5ZM | |
| WF48K7TE | 7 | WF48J7Z | WF48J7ZM | ||
| WF48K20TE | 20 | WF48J20Z | WF48J20ZM | ||
| WF48K27TE | 27 | WF48J27Z | WF48J27ZM | ||
| WF48K38TE | 38 | WF48J38Z | WF48J38ZM | ||
| WF48K42TE | 42 | WF48J42Z | WF48J42ZM | ||
| WF55K4TE | 55 | 4 | WF55J4Z | WF55J4ZM | |
| WF55K7TE | 7 | WF55J7Z | WF55J7ZM | ||
| WF55K40TE | 40 | WF55J40Z | WF55J40ZM | ||
| WF55K53TE | 53 | WF55J53Z | WF55J53ZM | ||
| WF55K61TE | 61 | WF55J61Z | WF55J61ZM | ||
技术参数
| 接插方式 | 螺纹连接 |
| 接线方式 | 焊接 |
| 接插次数 | 500次 |
| 温度范围 | -40℃~+85℃ |
-
