查看大图
型号筛选
未生成型号，还有 5 项未选择
代码
参数选型
安装直径
端头形状
芯数
产品选型
颜色
图片仅供参考，请以已选的规格为准

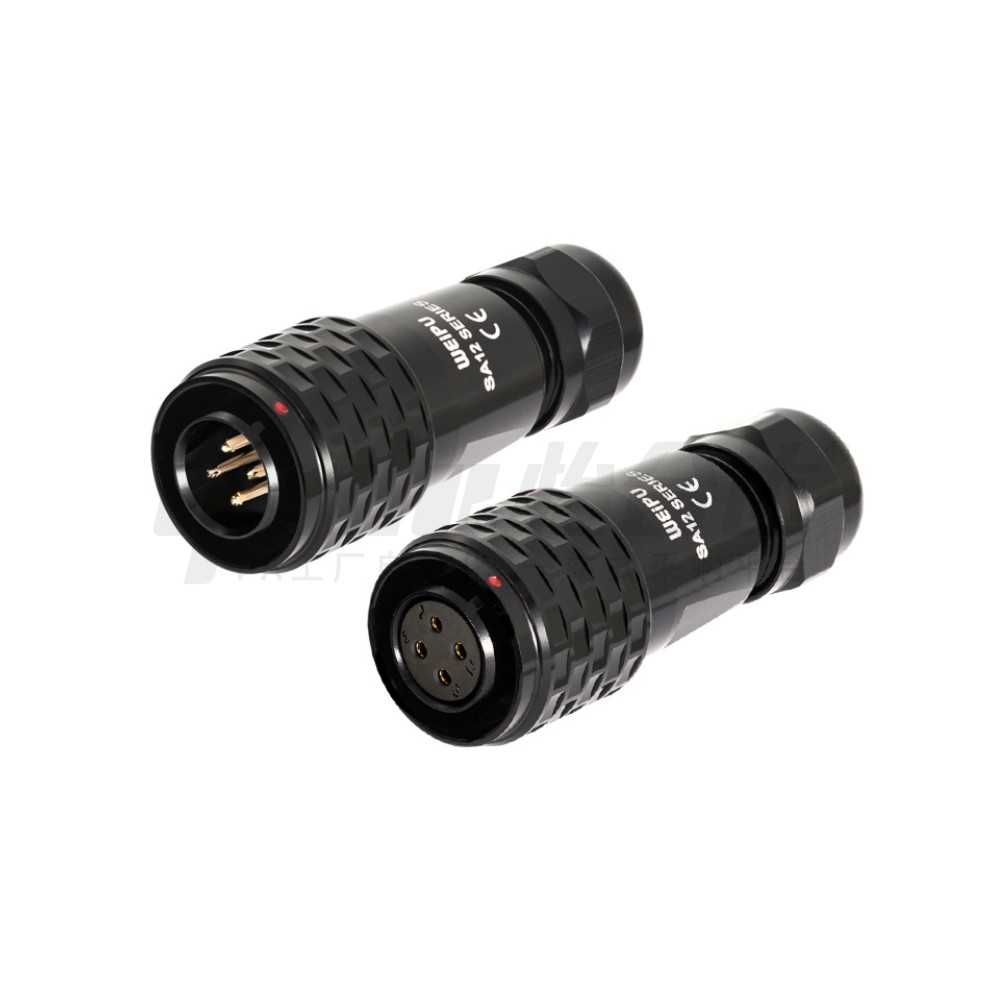

威浦 SA系列 防水型 圆形连接器 电缆插头
品牌名称：
威浦
条件筛选：
外壳材质 铝阳极氧化
类型 防水型
系列 SA系列
产品种类 快速拔插连接器
连接方式 推入式快速锁紧
类别名称 电缆插头
产品型号：
请先点击左侧选项进行选型>>
登录后可查看价格、加入购物车、一键购买
立即登录
技术图档
全部型号
3D预览
产品简介
材质图
参数图
材质图
| 系列 | 类型 | 接插方式 | 材质 | 防护等级 | ||
| 外壳 | 绝缘体 | 接触件 | ||||
| SA系列 | 电缆插头 | 推入式 快速锁紧 |
铝 (阳极氧化) |
热塑塑料PPS | 铜(镀金) | IP67 (连接后) |
参数图
插针
| 型号 | 颜色 | 配合 直径 |
芯数 | 适配插座(常用） | |||
| 电缆对接插座 | 后螺母插座 | 方形法兰插座 | 前螺母插座 | ||||
| SA610P2 | B(黑色) S(银色) |
6 | 2 | SA611S2 | SA612S2 | — | SA615S2 |
| SA610P3 | 3 | SA611S3 | SA612S3 | SA615S3 | |||
| SA610P4 | 4 | SA611S4 | SA612S4 | SA615S4 | |||
| SA610P5 | 5 | SA611S5 | SA612S5 | SA615S5 | |||
| SA810P2 | 8 | 2 | SA811S2 | SA812S2 | SA815S2 | ||
| SA810P3 | 3 | SA811S3 | SA812S3 | SA815S3 | |||
| SA810P4 | 4 | SA811S4 | SA812S4 | SA815S4 | |||
| SA810P6 | 6 | SA811S6 | SA812S6 | SA815S6 | |||
| SA810P8 | 8 | SA811S8 | SA812S8 | SA815S8 | |||
| SA1010P2 | 10 | 2 | SA1011S2 | SA1012S2 | SA1015S2 | ||
| SA1010P3 | 3 | SA1011S3 | SA1012S3 | SA1015S3 | |||
| SA1010P4 | 4 | SA1011S4 | SA1012S4 | SA1015S4 | |||
| SA1010P5 | 5 | SA1011S5 | SA1012S5 | SA1015S5 | |||
| SA1210P2 | 12 | 2 | SA1211S2 | SA1212S2 | SA1213S2 | SA1215S2 | |
| SA1210P3 | 3 | SA1211S3 | SA1212S3 | SA1213S3 | SA1215S3 | ||
| SA1210P4 | 4 | SA1211S4 | SA1212S4 | SA1213S4 | SA1215S4 | ||
| SA1210P5 | 5 | SA1211S5 | SA1212S5 | SA1213S5 | SA1215S5 | ||
| SA1210P6 | 6 | SA1211S6 | SA1212S6 | SA1213S6 | SA1215S6 | ||
| SA1210P7 | 7 | SA1211S7 | SA1212S7 | SA1213S7 | SA1215S7 | ||
| SA1210P9 | 9 | SA1211S9 | SA1212S9 | SA1213S9 | SA1215S9 | ||
| SA1610P2 | 16 | 2 | SA1611S2 | SA1612S2 | SA1613S2 | SA1615S2 | |
| SA1610P3 | 3 | SA1611S3 | SA1612S3 | SA1613S3 | SA1615S3 | ||
| SA1610P4 | 4 | SA1611S4 | SA1612S4 | SA1613S4 | SA1615S4 | ||
| SA1610P5 | 5 | SA1611S5 | SA1612S5 | SA1613S5 | SA1615S5 | ||
| SA1610P7 | 7 | SA1611S7 | SA1612S7 | SA1613S7 | SA1615S7 | ||
| SA1610P9 | 9 | SA1611S9 | SA1612S9 | SA1613S9 | SA1615S9 | ||
| SA1610P10 | 10 | SA1611S10 | SA1612S10 | SA1613S10 | SA1615S10 | ||
| SA2010P2 | 20 | 2 | SA2011S2 | SA2012S2 | SA2013S2 | SA2015S2 | |
| SA2010P3 | 3 | SA2011S3 | SA2012S3 | SA2013S3 | SA2015S3 | ||
| SA2010P4 | 4 | SA2011S4 | SA2012S4 | SA2013S4 | SA2015S4 | ||
| SA2010P5 | 5 | SA2011S5 | SA2012S5 | SA2013S5 | SA2015S5 | ||
| SA2010P6 | 6 | SA2011S6 | SA2012S6 | SA2013S6 | SA2015S6 | ||
| SA2010P7 | 7 | SA2011S7 | SA2012S7 | SA2013S7 | SA2015S7 | ||
| SA2010P8 | 8 | SA2011S8 | SA2012S8 | SA2013S8 | SA2015S8 | ||
| SA2010P9 | 9 | SA2011S9 | SA2012S9 | SA2013S9 | SA2015S9 | ||
| SA2010P12 | 12 | SA2011S12 | SA2012S12 | SA2013S12 | SA2015S12 | ||
| SA2010P15 | 15 | SA2011S15 | SA2012S15 | SA2013S15 | SA2015S15 | ||
| SA2410P2 | 24 | 2 | SA2411S2 | SA2412S2 | SA2413S2 | — | |
| SA2410P3 | 3 | SA2411S3 | SA2412S3 | SA2413S3 | |||
| SA2410P4 | 4 | SA2411S4 | SA2412S4 | SA2413S4 | |||
| SA2410P9 | 9 | SA2411S9 | SA2412S9 | SA2413S9 | |||
| SA2410P10 | 10 | SA2411S10 | SA2412S10 | SA2413S10 | |||
| SA2410P12 | 12 | SA2411S12 | SA2412S12 | SA2413S12 | |||
| SA2410P19 | 19 | SA2411S19 | SA2412S19 | SA2413S19 | |||
| SA2810P2 | 28 | 2 | SA2811S2 | SA2812S2 | SA2813S2 | SA2815S2 | |
| SA2810P3 | 3 | SA2811S3 | SA2812S3 | SA2813S3 | SA2815S3 | ||
| SA2810P4 | 4 | SA2811S4 | SA2812S4 | SA2813S4 | SA2815S4 | ||
| SA2810P7 | 7 | SA2811S7 | SA2812S7 | SA2813S7 | SA2815S7 | ||
| SA2810P8 | 8 | SA2811S8 | SA2812S8 | SA2813S8 | SA2815S8 | ||
| SA2810P9 | 9 | SA2811S9 | SA2812S9 | SA2813S9 | SA2815S9 | ||
| SA2810P10 | 10 | SA2811S10 | SA2812S10 | SA2813S10 | SA2815S10 | ||
| SA2810P12 | 12 | SA2811S12 | SA2812S12 | SA2813S12 | SA2815S12 | ||
| SA2810P16 | 16 | SA2811S16 | SA2812S16 | SA2813S16 | SA2815S16 | ||
| SA2810P17 | 17 | SA2811S17 | SA2812S17 | SA2813S17 | SA2815S17 | ||
| SA2810P20 | 20 | SA2811S20 | SA2812S20 | SA2813S20 | SA2815S20 | ||
| SA2810P24 | 24 | SA2811S24 | SA2812S24 | SA2813S24 | SA2815S24 | ||
| SA2810P26 | 26 | SA2811S26 | SA2812S26 | SA2813S26 | SA2815S26 | ||
| SA2810P35 | 35 | SA2811S35 | SA2812S35 | SA2813S35 | SA2815S35 | ||
插孔
| 型号 | 颜色 | 配合 直径 |
芯数 | 适配插座(常用） | |||
| 电缆对接插座 | 后螺母插座 | 方形法兰插座 | 前螺母插座 | ||||
| SA610S2 | B(黑色) S(银色) |
6 | 2 | SA611P2 | SA612P2 | — | SA615P2 |
| SA610S3 | 3 | SA611P3 | SA612P3 | SA615P3 | |||
| SA610S4 | 4 | SA611P4 | SA612P4 | SA615P4 | |||
| SA610S5 | 5 | SA611P5 | SA612P5 | SA615P5 | |||
| SA810S2 | 8 | 2 | SA811P2 | SA812P2 | SA815P2 | ||
| SA810S3 | 3 | SA811P3 | SA812P3 | SA815P3 | |||
| SA810S4 | 4 | SA811P4 | SA812P4 | SA815P4 | |||
| SA810S6 | 6 | SA811P6 | SA812P6 | SA815P6 | |||
| SA810S8 | 8 | SA811P8 | SA812P8 | SA815P8 | |||
| SA1010S2 | 10 | 2 | SA1011P2 | SA1012P2 | SA1015P2 | ||
| SA1010S3 | 3 | SA1011P3 | SA1012P3 | SA1015P3 | |||
| SA1010S4 | 4 | SA1011P4 | SA1012P4 | SA1015P4 | |||
| SA1010S5 | 5 | SA1011P5 | SA1012P5 | SA1015P5 | |||
| SA1210S2 | 12 | 2 | SA1211P2 | SA1212P2 | SA1213P2 | SA1215P2 | |
| SA1210S3 | 3 | SA1211P3 | SA1212P3 | SA1213P3 | SA1215P3 | ||
| SA1210S4 | 4 | SA1211P4 | SA1212P4 | SA1213P4 | SA1215P4 | ||
| SA1210S5 | 5 | SA1211P5 | SA1212P5 | SA1213P5 | SA1215P5 | ||
| SA1210S6 | 6 | SA1211P6 | SA1212P6 | SA1213P6 | SA1215P6 | ||
| SA1210S7 | 7 | SA1211P7 | SA1212P7 | SA1213P7 | SA1215P7 | ||
| SA1210S9 | 9 | SA1211P9 | SA1212P9 | SA1213P9 | SA1215P9 | ||
| SA1610S2 | 16 | 2 | SA1611P2 | SA1612P2 | SA1613P2 | SA1615P2 | |
| SA1610S3 | 3 | SA1611P3 | SA1612P3 | SA1613P3 | SA1615P3 | ||
| SA1610S4 | 4 | SA1611P4 | SA1612P4 | SA1613P4 | SA1615P4 | ||
| SA1610S5 | 5 | SA1611P5 | SA1612P5 | SA1613P5 | SA1615P5 | ||
| SA1610S7 | 7 | SA1611P7 | SA1612P7 | SA1613P7 | SA1615P7 | ||
| SA1610S9 | 9 | SA1611P9 | SA1612P9 | SA1613P9 | SA1615P9 | ||
| SA1610S10 | 10 | SA1611P10 | SA1612P10 | SA1613P10 | SA1615P10 | ||
| SA2010S2 | 20 | 2 | SA2011P2 | SA2012P2 | SA2013P2 | SA2015P2 | |
| SA2010S3 | 3 | SA2011P3 | SA2012P3 | SA2013P3 | SA2015P3 | ||
| SA2010S4 | 4 | SA2011P4 | SA2012P4 | SA2013P4 | SA2015P4 | ||
| SA2010S5 | 5 | SA2011P5 | SA2012P5 | SA2013P5 | SA2015P5 | ||
| SA2010S6 | 6 | SA2011P6 | SA2012P6 | SA2013P6 | SA2015P6 | ||
| SA2010S7 | 7 | SA2011P7 | SA2012P7 | SA2013P7 | SA2015P7 | ||
| SA2010S8 | 8 | SA2011P8 | SA2012P8 | SA2013P8 | SA2015P8 | ||
| SA2010S9 | 9 | SA2011P9 | SA2012P9 | SA2013P9 | SA2015P9 | ||
| SA2010S12 | 12 | SA2011P12 | SA2012P12 | SA2013P12 | SA2015P12 | ||
| SA2010S15 | 15 | SA2011P15 | SA2012P15 | SA2013P15 | SA2015P15 | ||
| SA2410S2 | 24 | 2 | SA2411P2 | SA2412P2 | SA2413P2 | — | |
| SA2410S3 | 3 | SA2411P3 | SA2412P3 | SA2413P3 | |||
| SA2410S4 | 4 | SA2411P4 | SA2412P4 | SA2413P4 | |||
| SA2410S9 | 9 | SA2411P9 | SA2412P9 | SA2413P9 | |||
| SA2410S10 | 10 | SA2411P10 | SA2412P10 | SA2413P10 | |||
| SA2410S12 | 12 | SA2411P12 | SA2412P12 | SA2413P12 | |||
| SA2410S19 | 19 | SA2411P19 | SA2412P19 | SA2413P19 | |||
| SA2810S2 | 28 | 2 | SA2811P2 | SA2812P2 | SA2813P2 | SA2815P2 | |
| SA2810S3 | 3 | SA2811P3 | SA2812P3 | SA2813P3 | SA2815P3 | ||
| SA2810S | 4 | SA2811P4 | SA2812P4 | SA2813P4 | SA2815P4 | ||
| SA2810S7 | 7 | SA2811P7 | SA2812P7 | SA2813P7 | SA2815P7 | ||
| SA2810S8 | 8 | SA2811P8 | SA2812P8 | SA2813P8 | SA2815P8 | ||
| SA2810S9 | 9 | SA2811P9 | SA2812P9 | SA2813P9 | SA2815P9 | ||
| SA2810S10 | 10 | SA2811P10 | SA2812P10 | SA2813P10 | SA2815P10 | ||
| SA2810S12 | 12 | SA2811P12 | SA2812P12 | SA2813P12 | SA2815P12 | ||
| SA2810S16 | 16 | SA2811P16 | SA2812P16 | SA2813P16 | SA2815P16 | ||
| SA2810S17 | 17 | SA2811P17 | SA2812P17 | SA2813P17 | SA2815P17 | ||
| SA2810S20 | 20 | SA2811P20 | SA2812P20 | SA2813P20 | SA2815P20 | ||
| SA2810S24 | 24 | SA2811P24 | SA2812P24 | SA2813P24 | SA2815P24 | ||
| SA2810S26 | 26 | SA2811P26 | SA2812P26 | SA2813P26 | SA2815P26 | ||
| SA2810S35 | 35 | SA2811P35 | SA2812P35 | SA2813P35 | SA2815P35 | ||
技术参数
| 接插方式 | 推入式快速锁紧 |
| 接线方式 | 焊接 |
| 接插次数 | 500次 |
| 温度范围 | -40℃~+85℃ |
-
