产品选型
颜色
图片仅供参考，请以已选的规格为准

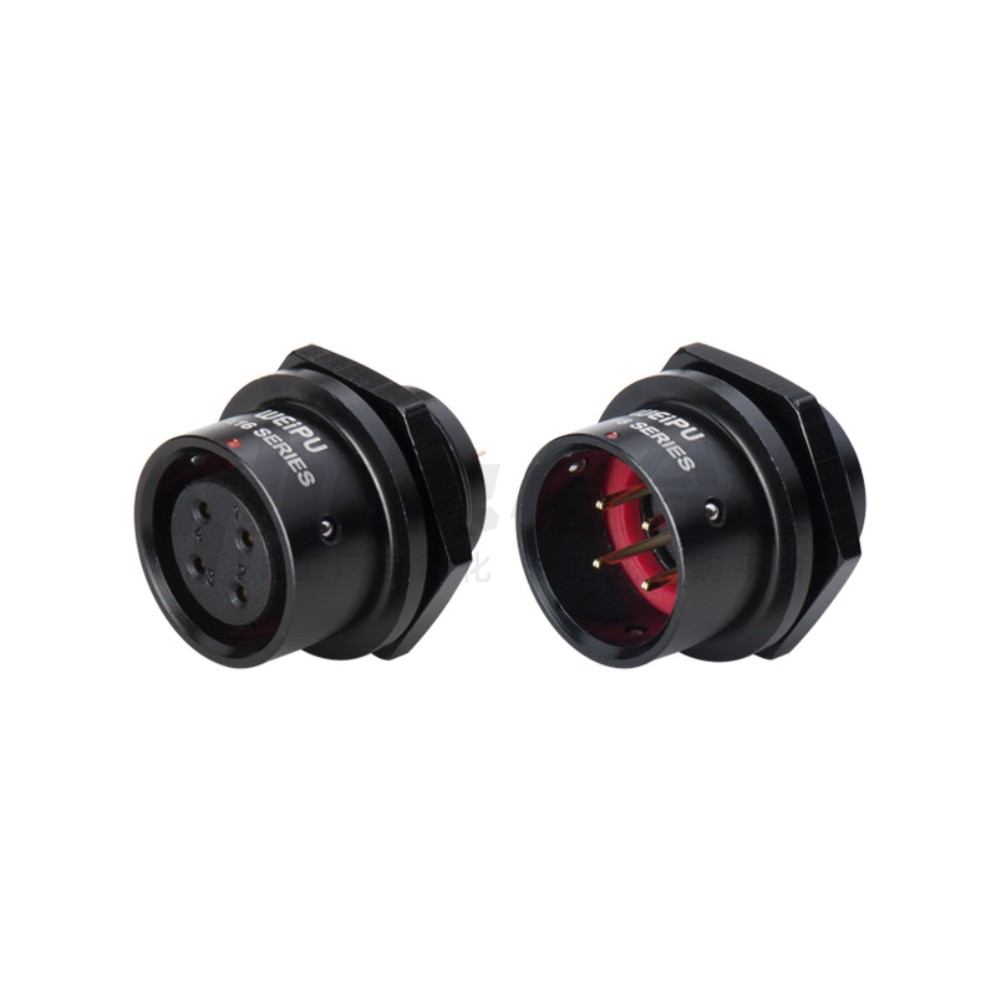

威浦 防水型 圆形连接器 SA系列 后螺母插座
品牌名称：
威浦
条件筛选：
外壳材质 铝阳极氧化
类型 防水型
系列 SA系列
产品种类 快速拔插连接器
连接方式 推入式快速锁紧
类别名称 后螺母插座
产品型号：
请先点击左侧选项进行选型>>
登录后可查看价格、加入购物车、一键购买
立即登录
技术图档
全部型号
3D预览
产品简介
材质图
参数图
材质图
| 系列 | 类型 | 接插方式 | 材质 | 防护等级 | ||
| 外壳 | 绝缘体 | 接触件 | ||||
| SA系列 | 后螺母插座 | 推入式 快速锁紧 |
铝 (阳极氧化) |
热塑塑料PPS | 铜(镀金) | IP67 (连接后) |
参数图
插针
| 型号 | 颜色 | 配合直径 | 芯数 | 适配插头 | |
| 电缆插头 | |||||
| SA612P2 | B(黑色) S(银色) |
6 | 2 | SA610S2 | |
| SA612P3 | 3 | SA610S3 | |||
| SA612P4 | 4 | SA610S4 | |||
| SA612P5 | 5 | SA610S5 | |||
| SA812P2 | 8 | 2 | SA810S2 | ||
| SA812P3 | 3 | SA810S3 | |||
| SA812P4 | 4 | SA810S4 | |||
| SA812P6 | 6 | SA810S6 | |||
| SA812P8 | 8 | SA810S8 | |||
| SA1012P2 | 10 | 2 | SA1010S2 | ||
| SA1012P3 | 3 | SA1010S3 | |||
| SA1012P4 | 4 | SA1010S4 | |||
| SA1012P5 | 5 | SA1010S5 | |||
| SA1212P2 | 12 | 2 | SA1210S2 | ||
| SA1212P3 | 3 | SA1210S3 | |||
| SA1212P4 | 4 | SA1210S4 | |||
| SA1212P5 | 5 | SA1210S5 | |||
| SA1212P6 | 6 | SA1210S6 | |||
| SA1212P7 | 7 | SA1210S7 | |||
| SA1212P9 | 9 | SA1210S9 | |||
| SA1612P2 | 16 | 2 | SA1610S2 | ||
| SA1612P3 | 3 | SA1610S3 | |||
| SA1612P4 | 4 | SA1610S4 | |||
| SA1612P5 | 5 | SA1610S5 | |||
| SA1612P7 | 7 | SA1610S7 | |||
| SA1612P9 | 9 | SA1610S9 | |||
| SA1612P10 | 10 | SA1610S10 | |||
| SA2012P2 | 20 | 2 | SA2010S2 | ||
| SA2012P3 | 3 | SA2010S3 | |||
| SA2012P4 | 4 | SA2010S4 | |||
| SA2012P5 | 5 | SA2010S5 | |||
| SA2012P6 | 6 | SA2010S6 | |||
| SA2012P7 | 7 | SA2010S7 | |||
| SA2012P8 | 8 | SA2010S8 | |||
| SA2012P9 | 9 | SA2010S9 | |||
| SA2012P12 | 12 | SA2010S12 | |||
| SA2012P15 | 15 | SA2010S15 | |||
| SA2412P2 | 24 | 2 | SA2410S2 | ||
| SA2412P3 | 3 | SA2410S3 | |||
| SA2412P4 | 4 | SA2410S4 | |||
| SA2412P9 | 9 | SA2410S9 | |||
| SA2412P10 | 10 | SA2410S10 | |||
| SA2412P12 | 12 | SA2410S12 | |||
| SA2412P19 | 19 | SA2410S19 | |||
| SA2812P2 | 28 | 2 | SA2810S2 | ||
| SA2812P3 | 3 | SA2810S3 | |||
| SA2812P4 | 4 | SA2810S4 | |||
| SA2812P7 | 7 | SA2810S7 | |||
| SA2812P8 | 8 | SA2810S8 | |||
| SA2812P9 | 9 | SA2810S9 | |||
| SA2812P10 | 10 | SA2810S10 | |||
| SA2812P12 | 12 | SA2810S12 | |||
| SA2812P16 | 16 | SA2810S16 | |||
| SA2812P17 | 17 | SA2810S17 | |||
| SA2812P20 | 20 | SA2810S20 | |||
| SA2812P24 | 24 | SA2810S24 | |||
| SA2812P26 | 26 | SA2810S26 | |||
| SA2812P35 | 35 | SA2810S35 | |||
插孔
| 型号 | 颜色 | 配合直径 | 芯数 | 适配插头 |
| 电缆插头 | ||||
| SA612S2 | B(黑色) S(银色) |
6 | 2 | SA610P2 |
| SA612S3 | 3 | SA610P3 | ||
| SA612S4 | 4 | SA610P4 | ||
| SA612S5 | 5 | SA610P5 | ||
| SA812S2 | 8 | 2 | SA810P2 | |
| SA812S3 | 3 | SA810P3 | ||
| SA812S4 | 4 | SA810P4 | ||
| SA812S6 | 6 | SA810P6 | ||
| SA812S8 | 8 | SA810P8 | ||
| SA1012S2 | 10 | 2 | SA1010P2 | |
| SA1012S3 | 3 | SA1010P3 | ||
| SA1012S4 | 4 | SA1010P4 | ||
| SA1012S5 | 5 | SA1010P5 | ||
| SA1212S2 | 12 | 2 | SA1210P2 | |
| SA1212S3 | 3 | SA1210P3 | ||
| SA1212S4 | 4 | SA1210P4 | ||
| SA1212S5 | 5 | SA1210P5 | ||
| SA1212S6 | 6 | SA1210P6 | ||
| SA1212S7 | 7 | SA1210P7 | ||
| SA1212S9 | 9 | SA1210P9 | ||
| SA1612S2 | 16 | 2 | SA1610P2 | |
| SA1612S3 | 3 | SA1610P3 | ||
| SA1612S4 | 4 | SA1610P4 | ||
| SA1612S5 | 5 | SA1610P5 | ||
| SA1612S7 | 7 | SA1610P7 | ||
| SA1612S9 | 9 | SA1610P9 | ||
| SA1612S10 | 10 | SA1610P10 | ||
| SA2012S2 | 20 | 2 | SA2010P2 | |
| SA2012S3 | 3 | SA2010P3 | ||
| SA2012S4 | 4 | SA2010P4 | ||
| SA2012S5 | 5 | SA2010P5 | ||
| SA2012S6 | 6 | SA2010P6 | ||
| SA2012S7 | 7 | SA2010P7 | ||
| SA2012S8 | 8 | SA2010P8 | ||
| SA2012S9 | 9 | SA2010P9 | ||
| SA2012S12 | 12 | SA2010P12 | ||
| SA2012S15 | 15 | SA2010P15 | ||
| SA2412S2 | 24 | 2 | SA2410P2 | |
| SA2412S3 | 3 | SA2410P3 | ||
| SA2412S4 | 4 | SA2410P4 | ||
| SA2412S9 | 9 | SA2410P9 | ||
| SA2412S10 | 10 | SA2410P10 | ||
| SA2412S12 | 12 | SA2410P12 | ||
| SA2412S19 | 19 | SA2410P19 | ||
| SA2812S2 | 28 | 2 | SA2810P2 | |
| SA2812S3 | 3 | SA2810P3 | ||
| SA2812S4 | 4 | SA2810P4 | ||
| SA2812S7 | 7 | SA2810P7 | ||
| SA2812S8 | 8 | SA2810P8 | ||
| SA2812S9 | 9 | SA2810P9 | ||
| SA2812S10 | 10 | SA2810P10 | ||
| SA2812S12 | 12 | SA2810P12 | ||
| SA2812S16 | 16 | SA2810P16 | ||
| SA2812S17 | 17 | SA2810P17 | ||
| SA2812S20 | 20 | SA2810P20 | ||
| SA2812S24 | 24 | SA2810P24 | ||
| SA2812S26 | 26 | SA2810P26 | ||
| SA2812S35 | 35 | SA2810P35 |
技术参数
| 接插方式 | 推入式快速锁紧 |
| 接线方式 | 焊接 |
| 接插次数 | 500次 |
| 温度范围 | -40℃~+85℃ |
-
