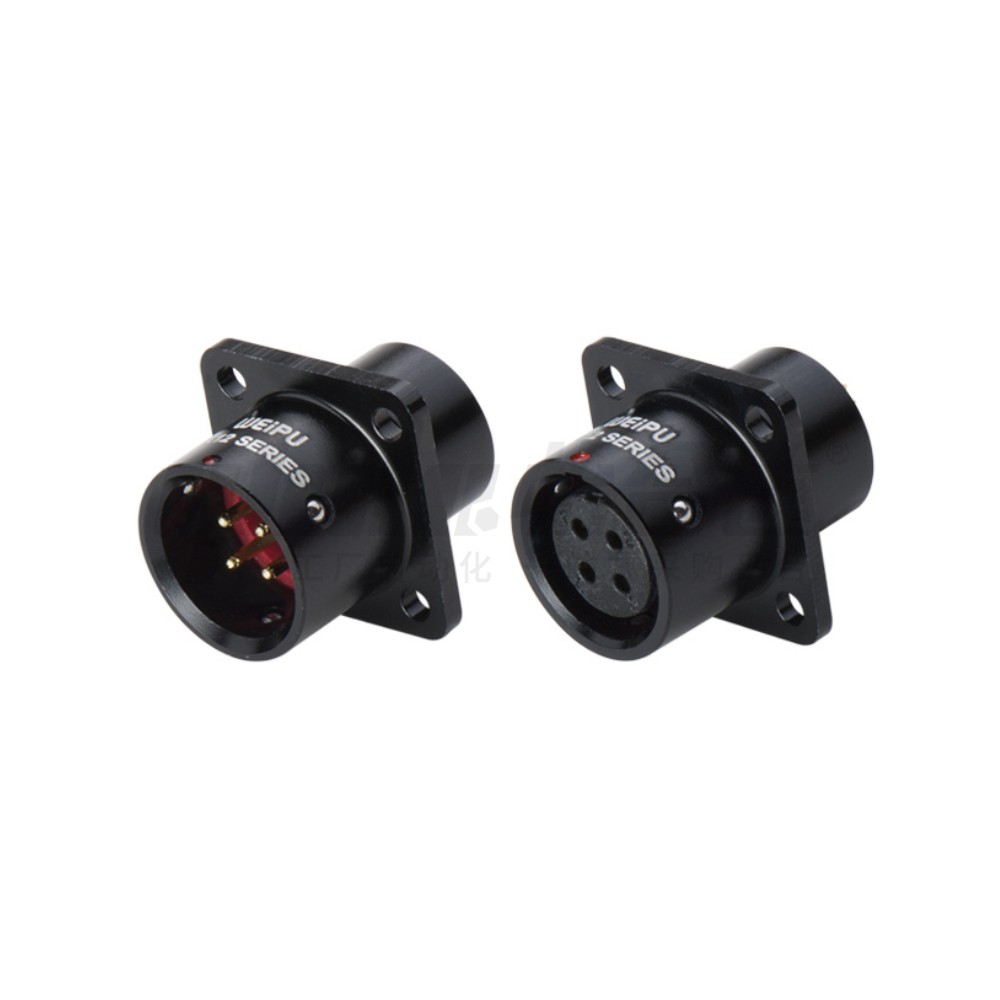

威浦 防水型 圆形连接器 SA系列 方形法兰插座
品牌名称：
威浦
条件筛选：
外壳材质 铝阳极氧化
类型 防水型
系列 SA系列
产品种类 快速拔插连接器
连接方式 推入式快速锁紧
类别名称 方形法兰插座
产品型号：
请先点击左侧选项进行选型>>
登录后可查看价格、加入购物车、一键购买
立即登录
技术图档
全部型号
3D预览
产品简介
材质图
参数图
材质图
| 系列 | 类型 | 接插方式 | 材质 | 防护等级 | ||
| 外壳 | 绝缘体 | 接触件 | ||||
| SA系列 | 方形法兰 插座 |
推入式 快速锁紧 |
铝 (阳极氧化) |
热塑塑料PPS | 铜(镀金) | IP67 (连接后) |

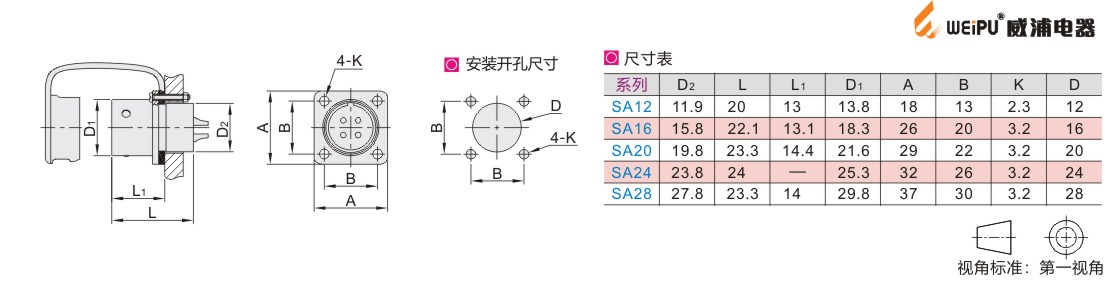

参数图
插针
| 型号 | 颜色 | 配合直径 | 芯数 | 适配插头 |
| 电缆插头 | ||||
| SA1213P2 | B(黑色) S(银色) |
12 | 2 | SA1210S2 |
| SA1213P3 | 3 | SA1210S3 | ||
| SA1213P4 | 4 | SA1210S4 | ||
| SA1213P5 | 5 | SA1210S5 | ||
| SA1213P6 | 6 | SA1210S6 | ||
| SA1213P7 | 7 | SA1210S7 | ||
| SA1213P9 | 9 | SA1210S9 | ||
| SA1613P2 | 16 | 2 | SA1610S2 | |
| SA1613P3 | 3 | SA1610S3 | ||
| SA1613P4 | 4 | SA1610S4 | ||
| SA1613P5 | 5 | SA1610S5 | ||
| SA1613P7 | 7 | SA1610S7 | ||
| SA1613P9 | 9 | SA1610S9 | ||
| SA1613P10 | 10 | SA1610S10 | ||
| SA2013P2 | 20 | 2 | SA2010S2 | |
| SA2013P3 | 3 | SA2010S3 | ||
| SA2013P4 | 4 | SA2010S4 | ||
| SA2013P5 | 5 | SA2010S5 | ||
| SA2013P6 | 6 | SA2010S6 | ||
| SA2013P7 | 7 | SA2010S7 | ||
| SA2013P8 | 8 | SA2010S8 | ||
| SA2013P9 | 9 | SA2010S9 | ||
| SA2013P12 | 12 | SA2010S12 | ||
| SA2013P15 | 15 | SA2010S15 | ||
| SA2413P2 | 24 | 2 | SA2410S2 | |
| SA2413P3 | 3 | SA2410S3 | ||
| SA2413P4 | 4 | SA2410S4 | ||
| SA2413P9 | 9 | SA2410S9 | ||
| SA2413P10 | 10 | SA2410S10 | ||
| SA2413P12 | 12 | SA2410S12 | ||
| SA2413P19 | 19 | SA2410S19 | ||
| SA2813P2 | 28 | 2 | SA2810S2 | |
| SA2813P3 | 3 | SA2810S3 | ||
| SA2813P4 | 4 | SA2810S4 | ||
| SA2813P7 | 7 | SA2810S7 | ||
| SA2813P8 | 8 | SA2810S8 | ||
| SA2813P9 | 9 | SA2810S9 | ||
| SA2813P10 | 10 | SA2810S10 | ||
| SA2813P12 | 12 | SA2810S12 | ||
| SA2813P16 | 16 | SA2810S16 | ||
| SA2813P17 | 17 | SA2810S17 | ||
| SA2813P20 | 20 | SA2810S20 | ||
| SA2813P24 | 24 | SA2810S24 | ||
| SA2813P26 | 26 | SA2810S26 | ||
| SA2813P35 | 35 | SA2810S35 |
插孔
| 型号 | 颜色 | 配合直径 | 芯数 | 适配插头 |
| 电缆插头 | ||||
| SA1213S2 | B(黑色) S(银色) |
12 | 2 | SA1210 P2 |
| SA1213S3 | 3 | SA1210 P3 | ||
| SA1213S4 | 4 | SA1210 P4 | ||
| SA1213S5 | 5 | SA1210 P5 | ||
| SA1213S6 | 6 | SA1210 P6 | ||
| SA1213S7 | 7 | SA1210 P7 | ||
| SA1213S9 | 9 | SA1210 P9 | ||
| SA1613S2 | 16 | 2 | SA1610 P2 | |
| SA1613S3 | 3 | SA1610 P3 | ||
| SA1613S4 | 4 | SA1610 P4 | ||
| SA1613S5 | 5 | SA1610 P5 | ||
| SA1613S7 | 7 | SA1610 P7 | ||
| SA1613S9 | 9 | SA1610 P9 | ||
| SA1613S10 | 10 | SA1610 P10 | ||
| SA2013S2 | 20 | 2 | SA2010 P2 | |
| SA2013S3 | 3 | SA2010 P3 | ||
| SA2013S4 | 4 | SA2010 P4 | ||
| SA2013S5 | 5 | SA2010 P5 | ||
| SA2013S6 | 6 | SA2010 P6 | ||
| SA2013S7 | 7 | SA2010 P7 | ||
| SA2013S8 | 8 | SA2010 P8 | ||
| SA2013S9 | 9 | SA2010 P9 | ||
| SA2013S12 | 12 | SA2010 P12 | ||
| SA2013S15 | 15 | SA2010 P15 | ||
| SA2413S2 | 24 | 2 | SA2410 P2 | |
| SA2413S3 | 3 | SA2410 P3 | ||
| SA2413S4 | 4 | SA2410 P4 | ||
| SA2413S9 | 9 | SA2410 P9 | ||
| SA2413S10 | 10 | SA2410 P10 | ||
| SA2413S12 | 12 | SA2410 P12 | ||
| SA2413S19 | 19 | SA2410 P19 | ||
| SA2813S2 | 28 | 2 | SA2810 P2 | |
| SA2813S3 | 3 | SA2810 P3 | ||
| SA2813S4 | 4 | SA2810 P4 | ||
| SA2813S7 | 7 | SA2810 P7 | ||
| SA2813S8 | 8 | SA2810 P8 | ||
| SA2813S9 | 9 | SA2810 P9 | ||
| SA2813S10 | 10 | SA2810 P10 | ||
| SA2813S12 | 12 | SA2810 P12 | ||
| SA2813S16 | 16 | SA2810 P16 | ||
| SA2813S17 | 17 | SA2810 P17 | ||
| SA2813S20 | 20 | SA2810 P20 | ||
| SA2813S24 | 24 | SA2810 P24 | ||
| SA2813S26 | 26 | SA2810 P26 | ||
| SA2813S35 | 35 | SA2810 P35 |
技术参数
| 接插方式 | 推入式快速锁紧 |
| 接线方式 | 焊接 |
| 接插次数 | 500次 |
| 温度范围 | -40℃~+85℃ |
-
