产品选型
颜色
图片仅供参考，请以已选的规格为准

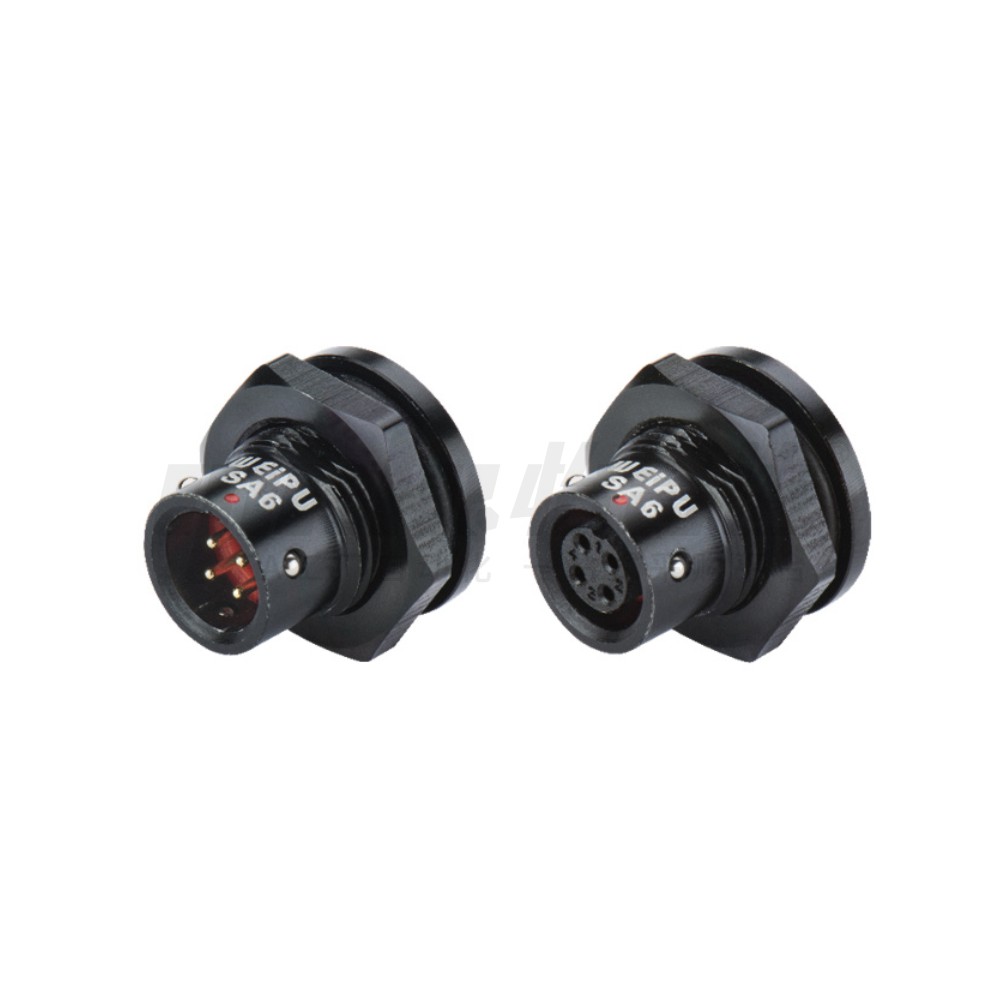

威浦 防水型 圆形连接器 SA系列 前螺母插座
品牌名称：
威浦
条件筛选：
外壳材质 铝阳极氧化
类型 防水型
系列 SA系列
产品种类 快速拔插连接器
连接方式 推入式快速锁紧
类别名称 前螺母插座
产品型号：
请先点击左侧选项进行选型>>
登录后可查看价格、加入购物车、一键购买
立即登录
技术图档
全部型号
3D预览
产品简介
材质图
参数图
材质图
| 系列 | 类型 | 接插方式 | 材质 | 防护等级 | ||
| 外壳 | 绝缘体 | 接触件 | ||||
| SA系列 | 前螺母插座 | 推入式 快速锁紧 |
铝 (阳极氧化) |
热塑塑料PPS | 铜(镀金) | IP67 (连接后) |

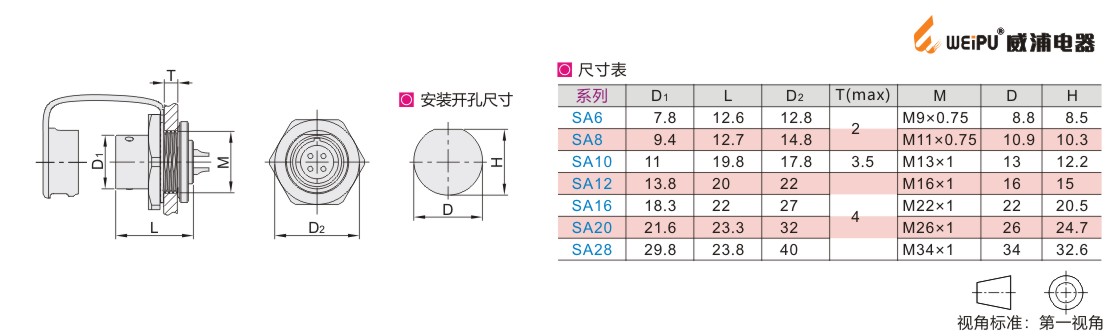

参数图
插针
| 型号 | 颜色 | 配合直径 | 芯数 | 适配插头 |
| 电缆插头 | ||||
| SA615P2 | B(黑色) S(银色) |
6 | 2 | SA610S2 |
| SA615P3 | 3 | SA610S3 | ||
| SA615P4 | 4 | SA610S4 | ||
| SA615P5 | 5 | SA610S5 | ||
| SA815P2 | 8 | 2 | SA810S2 | |
| SA815P3 | 3 | SA810S3 | ||
| SA815P4 | 4 | SA810S4 | ||
| SA815P6 | 6 | SA810S6 | ||
| SA815P8 | 8 | SA810S8 | ||
| SA1015P2 | 10 | 2 | SA1010S2 | |
| SA1015P3 | 3 | SA1010S3 | ||
| SA1015P4 | 4 | SA1010S4 | ||
| SA1015P5 | 5 | SA1010S5 | ||
| SA1215P2 | 12 | 2 | SA1210S2 | |
| SA1215P3 | 3 | SA1210S3 | ||
| SA1215P4 | 4 | SA1210S4 | ||
| SA1215P5 | 5 | SA1210S5 | ||
| SA1215P6 | 6 | SA1210S6 | ||
| SA1215P7 | 7 | SA1210S7 | ||
| SA1215P9 | 9 | SA1210S9 | ||
| SA1615P2 | 16 | 2 | SA1610S2 | |
| SA1615P3 | 3 | SA1610S3 | ||
| SA1615P4 | 4 | SA1610S4 | ||
| SA1615P5 | 5 | SA1610S5 | ||
| SA1615P7 | 7 | SA1610S7 | ||
| SA1615P9 | 9 | SA1610S9 | ||
| SA1615P10 | 10 | SA1610S10 | ||
| SA2015P2 | 20 | 2 | SA2010S2 | |
| SA2015P3 | 3 | SA2010S3 | ||
| SA2015P4 | 4 | SA2010S4 | ||
| SA2015P5 | 5 | SA2010S5 | ||
| SA2015P6 | 6 | SA2010S6 | ||
| SA2015P7 | 7 | SA2010S7 | ||
| SA2015P8 | 8 | SA2010S8 | ||
| SA2015P9 | 9 | SA2010S9 | ||
| SA2015P12 | 12 | SA2010S12 | ||
| SA2015P15 | 15 | SA2010S15 | ||
| SA2815P2 | 28 | 2 | SA2810S2 | |
| SA2815P3 | 3 | SA2810S3 | ||
| SA2815P4 | 4 | SA2810S4 | ||
| SA2815P7 | 7 | SA2810S7 | ||
| SA2815P8 | 8 | SA2810S8 | ||
| SA2815P9 | 9 | SA2810S9 | ||
| SA2815P10 | 10 | SA2810S10 | ||
| SA2815P12 | 12 | SA2810S12 | ||
| SA2815P16 | 16 | SA2810S16 | ||
| SA2815P17 | 17 | SA2810S17 | ||
| SA2815P20 | 20 | SA2810S20 | ||
| SA2815P24 | 24 | SA2810S24 | ||
| SA2815P26 | 26 | SA2810S26 | ||
| SA2815P35 | 35 | SA2810S35 |
插孔
| 型号 | 颜色 | 配合直径 | 芯数 | 适配插头 |
| 电缆插头 | ||||
| SA615S2 | B(黑色) S(银色) |
6 | 2 | SA610P2 |
| SA615S3 | 3 | SA610P3 | ||
| SA615S4 | 4 | SA610P4 | ||
| SA615S5 | 5 | SA610P5 | ||
| SA815S2 | 8 | 2 | SA810P2 | |
| SA815S3 | 3 | SA810P3 | ||
| SA815S4 | 4 | SA810P4 | ||
| SA815S6 | 6 | SA810P6 | ||
| SA815S8 | 8 | SA810P8 | ||
| SA1015S2 | 10 | 2 | SA1010P2 | |
| SA1015S3 | 3 | SA1010P3 | ||
| SA1015S4 | 4 | SA1010P4 | ||
| SA1015S5 | 5 | SA1010P5 | ||
| SA1215S2 | 12 | 2 | SA1210P2 | |
| SA1215S3 | 3 | SA1210P3 | ||
| SA1215S4 | 4 | SA1210P4 | ||
| SA1215S5 | 5 | SA1210P5 | ||
| SA1215S6 | 6 | SA1210P6 | ||
| SA1215S7 | 7 | SA1210P7 | ||
| SA1215S9 | 9 | SA1210P9 | ||
| SA1615S2 | 16 | 2 | SA1610P2 | |
| SA1615S3 | 3 | SA1610P3 | ||
| SA1615S4 | 4 | SA1610P4 | ||
| SA1615S5 | 5 | SA1610P5 | ||
| SA1615S7 | 7 | SA1610P7 | ||
| SA1615S9 | 9 | SA1610P9 | ||
| SA1615S10 | 10 | SA1610P10 | ||
| SA2015S2 | 20 | 2 | SA2010P2 | |
| SA2015S3 | 3 | SA2010P3 | ||
| SA2015S4 | 4 | SA2010P4 | ||
| SA2015S5 | 5 | SA2010P5 | ||
| SA2015S6 | 6 | SA2010P6 | ||
| SA2015S7 | 7 | SA2010P7 | ||
| SA2015S8 | 8 | SA2010P8 | ||
| SA2015S9 | 9 | SA2010P9 | ||
| SA2015S12 | 12 | SA2010P12 | ||
| SA2015S15 | 15 | SA2010P15 | ||
| SA2815S2 | 28 | 2 | SA2810P2 | |
| SA2815S3 | 3 | SA2810P3 | ||
| SA2815S4 | 4 | SA2810P4 | ||
| SA2815S7 | 7 | SA2810P7 | ||
| SA2815S8 | 8 | SA2810P8 | ||
| SA2815S9 | 9 | SA2810P9 | ||
| SA2815S10 | 10 | SA2810P10 | ||
| SA2815S12 | 12 | SA2810P12 | ||
| SA2815S16 | 16 | SA2810P16 | ||
| SA2815S17 | 17 | SA2810P17 | ||
| SA2815S20 | 20 | SA2810P20 | ||
| SA2815S24 | 24 | SA2810P24 | ||
| SA2815S26 | 26 | SA2810P26 | ||
| SA2815S35 | 35 | SA2810P35 |
技术参数
| 接插方式 | 推入式快速锁紧 |
| 接线方式 | 焊接 |
| 接插次数 | 500次 |
| 温度范围 | -40℃~+85℃ |
-
