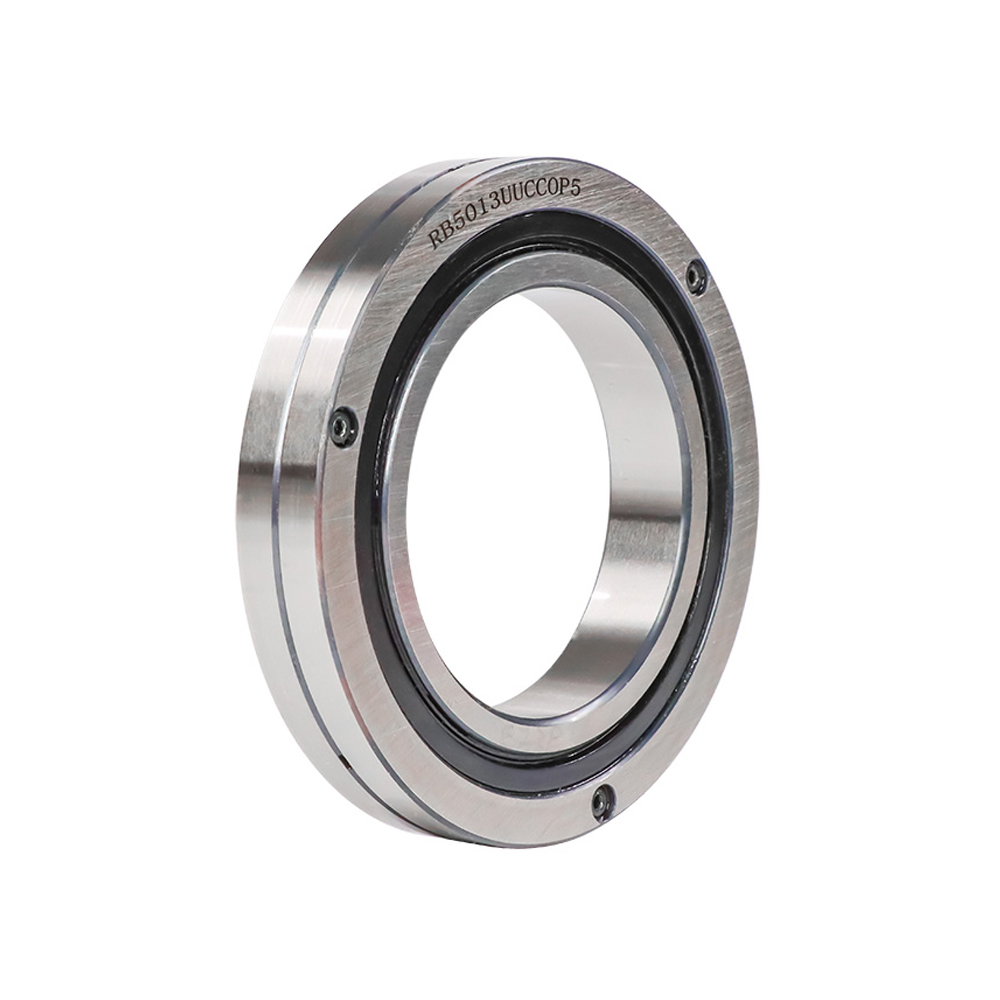

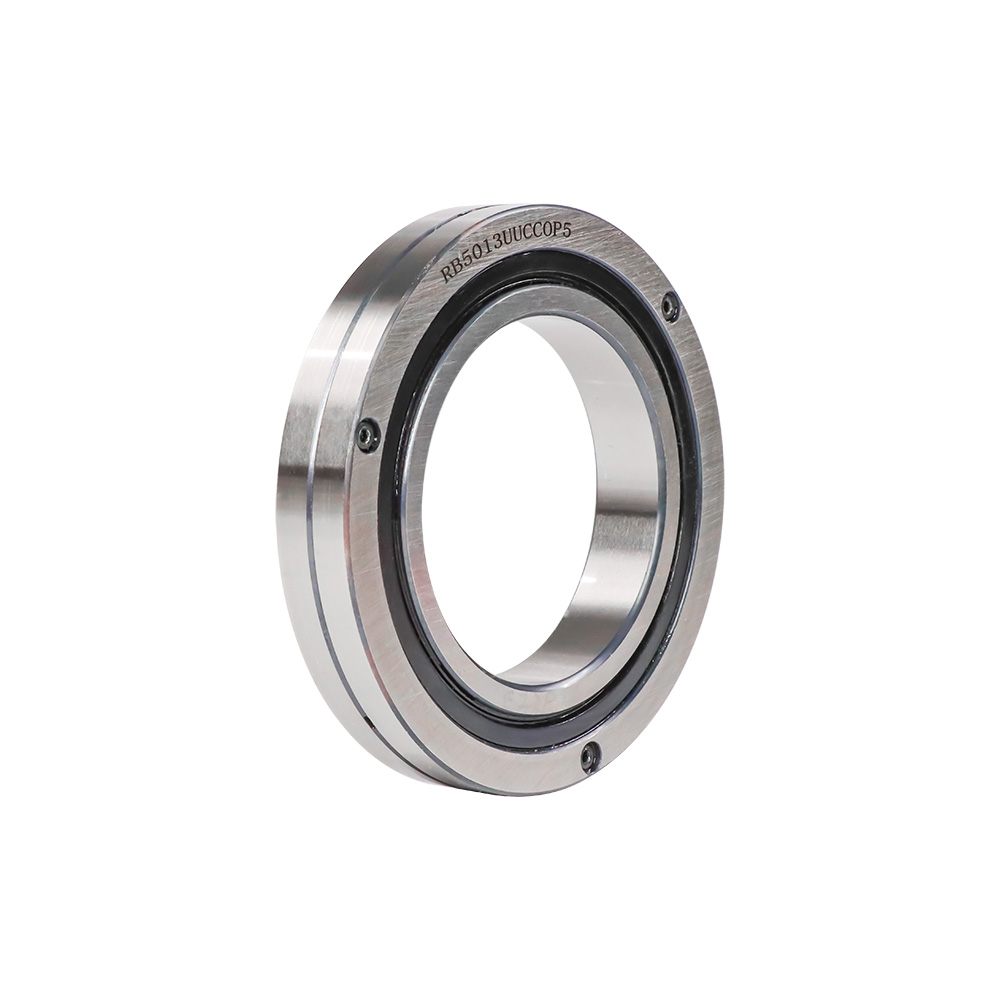

交叉滚子轴承 P5精度两面带密封圈负游隙

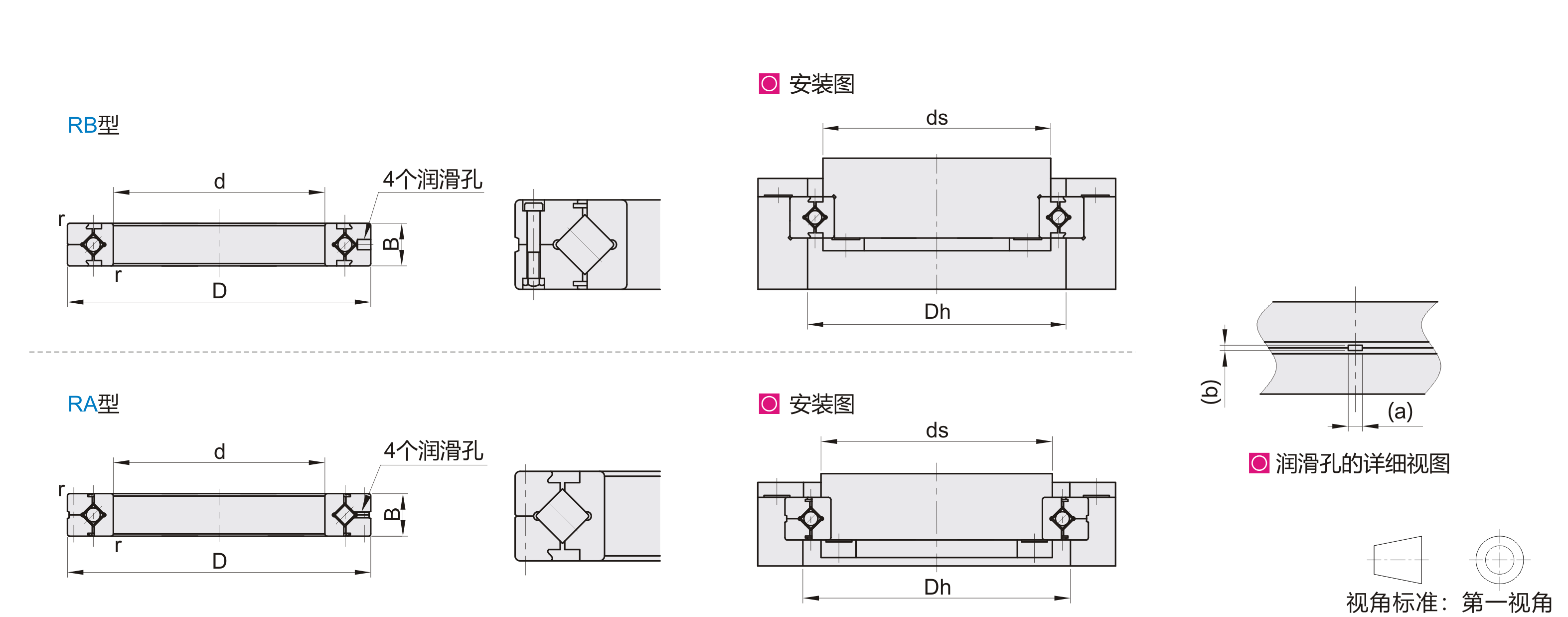

型号	主要尺寸						肩部尺寸		基本额定负载(径向)		重量(Kg) (参考)
	d	D	B	r (min)	润滑孔		ds ( max)	Dh ( min)	Cr(动) KN	Co(静) KN
	d	D	B	r (min)	a	b	ds ( max)	Dh ( min)	Cr(动) KN	Co(静) KN
RB3010UUCC0P5	30	55	10	0.6	25	1	37	47	7.35	8.36	0.12
RB3510UUCC0P5	35	60					41	51.5	7.64	9.12	0.13
RB4510UUCC0P5	45	70					51	61.5	8.62	11.3	0.17
RA5008UUCC0P5	50	66	8	0.5	2	0.8	53.5	60.5	5.1	7.19	0.08
RB5013UUCC0P5	50	80	13	0.6	2.5	1.6	57	72	16.7	20.9	0.27
RA6008UUCC0P5	60	76	8	0.5	2	0.8	63.5	70.5	5.68	8.68	0.09
RB6013UUCC0P5	60	90	13	0.6	2.5	1.6	67	82	18	24.3	0.3
RA7008UUCC0P5	70	86	8	0.5	2	0.8	73.5	80.5	5.98	9.8	0.1
RA8008UUCC0P5	80	96					83.5	90.5	6.37	11.3	0.11
RA9008UUCC0P5	90	106					93.5	100.5	6.76	12.4	0.12
RB9016UUCC0P5	90	130	16	1	3	1.6	98	118	31.4	45.3	0.75
RA10008UUCC0P5	100	116	8	0.5	2	0.8	103.5	110.5	7.15	13.9	0.14
RB10016UUCC0P5		140	16	1	3.5	1.6	109	129	31.7	48.6	0.83
RB10020UUCC0P5		150	20	1	3.5	1.6	113	133	33.1	50.9	1.45
RA11008UUCC0P5	110	126	8	0.5	2	0.8	113.5	120.5	7.45	15	0.15
RB11012UUCC0P5		135	12	0.6	2.5	1	117	128	12.5	24.1	0.4
RB11015UUCC0P5		145	15	0.6	3.5	1.6	119	136	23.7	41.5	0.75
RB11020UUCC0P5		160	20	1	3.5	1.6	120	143	34	54	1.56
RA12008UUCC0P5	120	136	8	0.5	2	0.8	123.5	130.5	7.84	16.5	0.17
RB12016UUCC0P5		150	16	0.6	3.5	1.6	127	141	24.2	43.2	0.72
RB12025UUCC0P5		180	25	1.5	3.5	2	133	164	66.9	100	2.62
RA13008UUCC0P5	130	146	8	0.5	2	0.8	133.5	140.5	7.94	17.6	0.18
RB13015UUCC0P5		160	15	0.6	3.5	1.6	137	152	25	46.7	0.72
RB13025UUCC0P5		190	25	1.5	3.5	2	143	174	69.5	107	2.82
RA14008UUCC0P5	140	156	8	0.5	2	0.8	143.5	150.5	8.33	19.1	0.19
RB14016UUCC0P5		175	16	1	2.5	1.6	147	162	25.9	50.1	1
RB14025UUCC0P5		200	25	1.5	3.5	2	154	185	74.8	121	2.96
RA15008UUCC0P5	150	166	8	0.5	2	0.8	153.5	160.5	8.82	20.6	0.2
RB15013UUCC0P5		180	13	0.6	2.5	1.6	157	172	27	53.5	0.68
RB15025UUCC0P5		210	25	1.5	3.5	2	164	194	76.8	128	3.16
RB15030UUCC0P5		230	30	1.5	4.5	3	169	211	100	156	5.3
RA16013UUCC0P5	160	186	13	0.8	2.5	1.6	165	179	23.3	44.9	0.59
RB16025UUCC0P5	160	220	25	1.5	3.5	2	173	204	81.7	135	3.14
RA17013UUCC0P5	170	196	13	0.8	2.5	1.6	175	189	23.5	46.5	0.64
RB17020UUCC0P5	170	220	20	1.5	3.5		184	198	29	62.1	2.21
RA18013UUCC0P5	180	206	13	0.8	2.5		185	199	24.5	49.8	0.68
RB18025UUCC0P5	180	240	25	1.5	3.5	2	195	225	84	143	3.44
RA19013UUCC0P5	190	216	13	0.8	2.5	1.6	195	209	24.9	51.5	0.69
RB19025UUCC0P5	190	240	25	1	3.5		202	222	41.7	82.9	2.99
RA20013UUCC0P5	200	226	13	0.8	2.5		205	219	25.8	54.7	0.71
RB20025UUCC0P5		260	25	2	3.5	2	215	245	84.2	157	4
RB20030UUCC0P5		280	30		4.5	3	221	258	114	200	6.7
RB20035UUCC0P5		295	35		5	3	225	270	151	252	9.6
RB22025UUCC0P5	220	280			3.5	2	235	265	92.3	171	4.1
RB24025UUCC0P5	240	300	25	2.5			256	281	68.3	145	4.5
RB25025UUCC0P5	250	310					265	290	69.3	150	5
RB25030UUCC0P5		330	30		4.5	3	269	306	126	244	8.1
RB25040UUCC0P5		355	40		6	3.5	275	326	195	348	14.8
RB30025UUCC0P5	300	360	25		3.5	2	315	340	76.3	178	5.9
RB30040UUCC0P5	300	405	40		6	3.5	326	377	212	409	17.2
RB35020UUCC0P5	350	400	20		3.5	1.6	363	383	54.1	143	3.9
RB40035UUCC0P5	400	480	35		5	3	422	459	156	370	14.5
RB40040UUCC0P5	400	510	40		6	3.5	428	479	241	531	23.5
RB45025UUCC0P5	450	500	25	1	3.5	1.6	464	484	61.7	182	6.6
RB50025UUCC0P5	500	550	25	1	3.5	1.6	514	534	65.5	201	7.3
