交叉滚子轴承轴承精度：P4 内外环一体型

代码	类型	后置代码	轴承游隙	轴承精度	轴承材质
					国标	相当
RBH	内外环一体型	UU(两端密封垫片)	CC0(负游隙) C0(正游隙)	P4	GCr15	SUJ2

型号		主要尺寸				肩部尺寸		基本额定负载(径向)		参考重量 (kg)
CC0(负游隙)	C0(正游隙)	d	D	B	r (min)	ds (max)	Dh (min)	Cr(动) KN	Cor(静) KN
CC0(负游隙)	C0(正游隙)	d	D	B	r (min)	ds (max)	Dh (min)	Cr(动) KN	Cor(静) KN
RBH208UUCC0P4	RBH208UUC0P4	20	36	8	0.5	22.8	31.2	2.9	2.4	0.04
RBH258UUCC0P4	RBH258UUC0P4	25	41	8	0.5	27.8	36.2	3.1	2.8	0.05

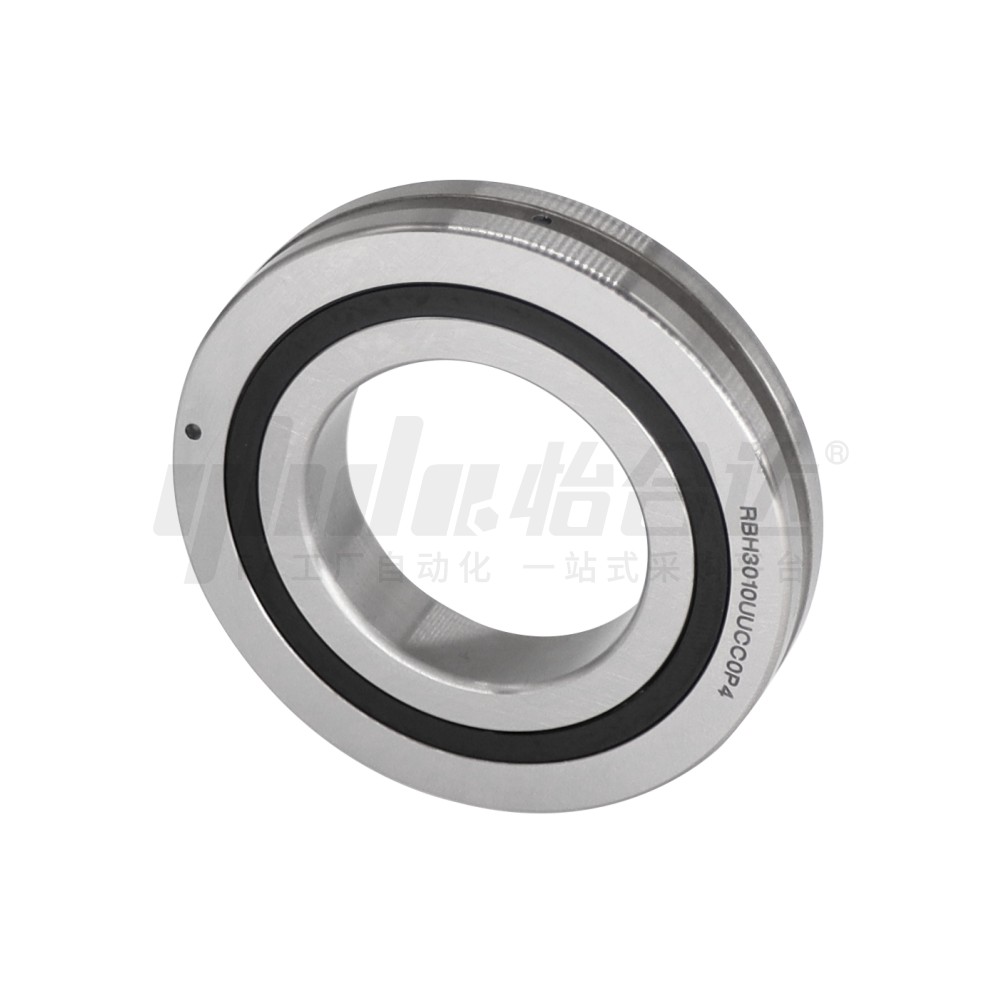

RBH3010UUCC0P4	RBH3010UUC0P4	30	55	10	0.6	35.8	47.2	7.6	8.4	0.12
RBH3510UUCC0P4	RBH3510UUC0P4	35	60	10	0.6	40.8	52.2	7.9	9.1	0.13
RBH4010UUCC0P4	RBH4010UUC0P4	40	65	10	0.6	46.3	57.7	8.6	10.6	0.15
RBH4510UUCC0P4	RBH4510UUC0P4	45	70	10	0.6	51.8	63.2	8.9	11.3	0.16
RBH5013UUCC0P4	RBH5013UUC0P4	50	80	13	0.6	57.9	72.1	17.3	20.9	0.29
RBH6013UUCC0P4	RBH6013UUC0P4	60	90	13	0.6	67.9	82.1	18.8	24.3	0.33
RBH7013UUCC0P4	RBH7013UUC0P4	70	100	13	0.5	75.2	89.4	20.1	27.7	0.38
RBH8016UUCC0P4	RBH8016UUC0P4	80	120	16	0.6	91.5	108.5	32.1	43.4	0.74
RBH9016UUCC0P4	RBH9016UUC0P4	90	130	16	0.6	99.5	116.5	33.1	46.8	0.81
RBH10016UUCC0P4	RBH10016UUC0P4	100	140	16	1	111.7	128.7	31.7	48.6	0.83
RBH10020UUCC0P4	RBH10020UUC0P4	100	150	20	1	110.7	133.3	50.9	72.2	1.45
RBH11012UUCC0P4	RBH11012UUC0P4	110	135	12	0.6	116	127.5	12.5	24.1	0.4
RBH11015UUCC0P4	RBH11015UUC0P4	110	145	15	0.6	118	135	23.7	41.5	0.75
RBH11020UUCC0P4	RBH11020UUC0P4	110	160	20	1	120.7	143.3	52.4	77.4	1.56
RBH12025UUCC0P4	RBH12025UUC0P4	120	180	25	1.5	134.2	162.4	73.4	108	2.62
RBH13015UUCC0P4	RBH13015UUC0P4	130	160	15	0.6	136	150	25	46.7	0.72
RBH13025UUCC0P4	RBH13025UUC0P4	130	190	25	1.5	143.9	172	75.9	115	2.82
RBH14016UUCC0P4	RBH14016UUC0P4	140	175	16	0.6	146.3	163.3	25.9	50.1	1
RBH14025UUCC0P4	RBH14025UUC0P4	140	200	25	1	153.9	182	81.9	130	2.96
RBH15013UUCC0P4	RBH15013UUC0P4	150	180	13	0.6	156.9	171.1	27	53.5	0.68
RBH15025UUCC0P4	RBH15025UUC0P4	150	210	25	1	165.9	194.1	84.3	138	3.16
RBH15030UUCC0P4	RBH15030UUC0P4	150	230	30	1.5	166.8	209.2	100	156	5.3
RBH16025UUCC0P4	RBH16025UUC0P4	160	220	25	1.5	173.9	202.1	81.7	135	3.14
RBH17020UUCC0P4	RBH17020UUC0P4	170	220	20	1.5	180.7	203.3	29	62.1	2.21
RBH18025UUCC0P4	RBH18025UUC0P4	180	240	25	1.5	193.9	222.1	84	143	3.44
RBH19025UUCC0P4	RBH19025UUC0P4	190	240	25	1	207	223.1	41.7	82.9	2.99
RBH20025UUCC0P4	RBH20025UUC0P4	200	260	25	1.5	215.9	244.1	92.3	169	4
RBH20030UUCC0P4	RBH20030UUC0P4	200	280	30	2	218.8	261.2	114	200	6.7
RBH20035UUCC0P4	RBH20035UUC0P4	200	295	35	2	226.5	268.9	151	252	9.6
